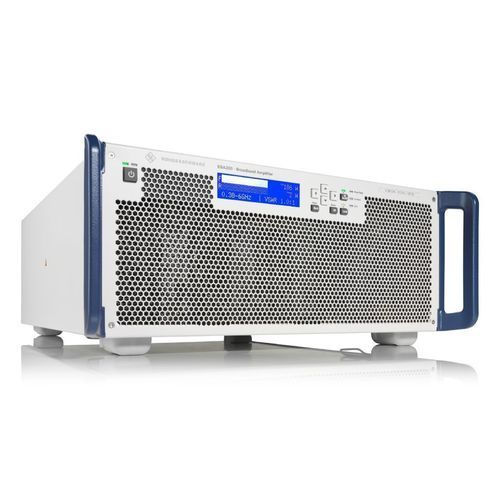

Avionics tester BBA300 series

aeronauticalcompact

Overview
The R&SBBA300 is a compact, modular ultra-wideband solid-state broadband amplifier family designed for high-availability use in test and measurement environments such as EMC testing, product validation, OTA coexistence and RF component testing. The family supports continuous RF sweeps across broad frequency ranges and delivers high linearity, low noise power density and controlled harmonic performance.

Key facts

• Continuous RF sweeps across ultra-broad frequency ranges up to 18 GHz (model-dependent)
• Linear RF output power up to 1000 W P1dB with low noise power density and typical harmonic levels around -25 dBc
• Supports amplitude, frequency, phase, pulse and complex OFDM modulation modes
• High availability and robust operation under severe mismatch and open/short conditions
• Flexible, scalable configurations with expandable frequency and power via hardware and software options

Product family description
The R&SBBA300 family includes configurable single-, dual- and multiband amplifier systems. Compact 19" modular plug-in units enable scalable rack installations. Frequency coverage and output power are configurable and extendable; switch options allow combining amplifiers for multi-band systems.

Performance and features

• Broadband amplification from 380 MHz up to 18 GHz depending on model, with high linearity and noise density down to approximately -110 dBm/Hz
• Tunable operating point (software option R&SBBA-PK1) to shift between class A and AB for optimization of linearity, pulse fidelity or maximum output power
• Robust RF design tolerates large mismatches (full RF power up to VSWR 6:1 in many configurations) and provides smart protection and periodic bias adjustment for long-term stability
• Modern role-based GUI, Ethernet SCPI remote control and optional SNMP for integration into automated test systems

Available models (model — frequency range — P1dB output power)
Single band models:
R&SBBA300-CDE15 — 380 MHz - 6 GHz — 15 W
R&SBBA300-CDE25 — 380 MHz - 6 GHz — 25 W
R&SBBA300-CDE50 — 380 MHz - 6 GHz — 50 W
R&SBBA300-CDE90 — 380 MHz - 6 GHz — 90 W
R&SBBA300-CDE180 — 380 MHz - 6 GHz — 180 W
R&SBBA300-CDE300 — 380 MHz - 6 GHz — 300 W
R&SBBA300-DE15 — 1 GHz - 6 GHz — 15 W
R&SBBA300-DE25 — 1 GHz - 6 GHz — 25 W
R&SBBA300-DE50 — 1 GHz - 6 GHz — 50 W
R&SBBA300-DE90 — 1 GHz - 6 GHz — 90 W
R&SBBA300-DE180 — 1 GHz - 6 GHz — 180 W
R&SBBA300-DE300 — 1 GHz - 6 GHz — 300 W
R&SBBA300-DE500 — 1 GHz - 6 GHz — 500 W
R&SBBA300-DE1000 — 1 GHz - 6 GHz — 1000 W
R&SBBA300-F30 — 6 GHz - 13 GHz — 30 W
R&SBBA300-F50 — 6 GHz - 13 GHz — 50 W
R&SBBA300-F90 — 6 GHz - 13 GHz — 90 W
R&SBBA300-F180 — 6 GHz - 13 GHz — 180 W
R&SBBA300-F300 — 6 GHz - 13 GHz — 300 W
R&SBBA300-FG30 — 6 GHz - 18 GHz — 30 W
R&SBBA300-FG50 — 6 GHz - 18 GHz — 50 W
R&SBBA300-FG90 — 6 GHz - 18 GHz — 90 W
R&SBBA300-FG180 — 6 GHz - 18 GHz — 180 W
R&SBBA300-FG300 — 6 GHz - 18 GHz — 300 W

Dual-/multi-band examples:
R&SBBA300-CDE25F30 — 380 MHz - 13 GHz — 25 / 30 W
R&SBBA300-CDE50F30 — 380 MHz - 13 GHz — 50 / 30 W
R&SBBA300-CDE50F50 — 380 MHz - 13 GHz — 50 / 50 W
R&SBBA300-CDE90F30 — 380 MHz - 13 GHz — 90 / 30 W
R&SBBA300-CDE90F50 — 380 MHz - 13 GHz — 90 / 50 W

Typical applications

• EMC and regulatory compliance testing requiring continuous wideband sweeps
• Product validation and RF component testing for wireless technologies (GSM, LTE, 5G, WLAN, Bluetooth®, Zigbee)
• OTA coexistence, system-level RF testing and automated test benches

Notes
Frequency and power extensions are available as software and hardware options. System configurations may include RF switches, couplers, loads and accessories for multiband and high-power rack solutions.

Technical specifications

• Frequency range (family): 380 MHz — 18 GHz (model-dependent)
• Maximum RF output power: up to 1000 W P1dB (model-dependent)
• P1dB output examples: 15 W, 25 W, 30 W, 50 W, 90 W, 180 W, 300 W, 500 W, 1000 W
• Noise power density: down to approx. -110 dBm/Hz
• Harmonics: typically around -25 dBc
• Modulation support: amplitude, frequency, phase, pulse, complex OFDM
• Mismatch tolerance: full RF power at high VSWR (up to 6:1 in typical configurations)
• Control interfaces: Ethernet with SCPI; optional SNMP
• Software options: operating-point tuning (R&SBBA-PK1) and high-power modes
• Form factor: compact modular 19" plug-in units for rack systems
