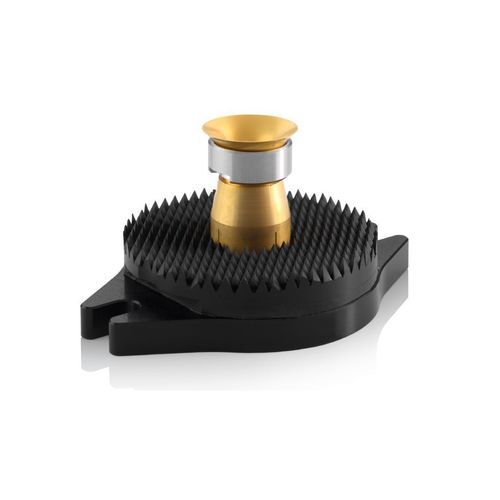

Aircraft antenna HF1444G14

microwavebroadbanddirectionnal

Product descriptionThe linearly polarized R&S®HF1444G14 high-gain EMI microwave antenna is a compact, very broadband receiving antenna covering 14.9 GHz to 44 GHz. It combines high antenna gain with a half-power beamwidth large enough to fully illuminate typical equipment under test (EUT) from short distances, reducing measurement time and enabling testing in smaller EMC chambers. The antenna is ideal for full compliance testing in combination with the R&S®ESW44 EMI test receiver.Key factsVery wide frequency range: 14.9 GHz to 44 GHzHigh antenna gain: 15 dBi combined with half-power beamwidth (HPBW) > 28°Low VSWR: < 1.8 above 17 GHzIdeal for full compliance testing up to 40 GHz for FCC Part 15 and MIL-STD-461GIn line with future CISPR 16-1-4 (test site validation) and CISPR 16-2-3 (measurement methods) standardsFeatures & benefitsWide frequency range — only one antenna needed for 14.9 GHz to 44 GHz, reducing measurement time and costHigh gain with wide beamwidth — enables full illumination of large EUTs from short distances (higher throughput, testing in smaller chambers)Full compliance testing — suitable for compliance testing up to 44 GHz in combination with the R&S®ESW44 EMI test receiver
