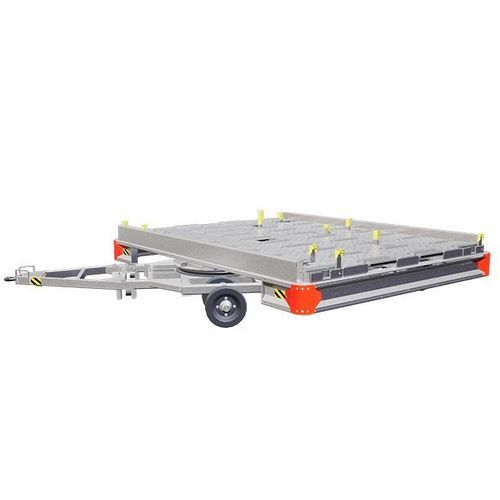

Pallet dolly PD-44R

LD3LD12-axle

The Viking pallet dolly is a durable, lightweight and robust one-piece welded chassis dolly designed for safe transportation of ULDs and pallets on airport aprons while meeting industry standards.

Construction and design

• One-piece welded chassis with pressed steel fabrication and folded outer walls to improve impact resistance and daily durability.
• Galvanised chassis finish and wind catcher finger stops provided as standard for upward and lateral restraint of pallets/ULDs.

Key features

• In-house design and manufacture by Viking to meet current IATA, BS and European standards.
• Parking brake fitted to inboard drum wheel hubs (activated upon lifting the tow bar vertically).
• Optional extras available: turntable steer, over-run brakes, anti step-over barrier and auto-reverse braking systems.
• Top deck height and wheel/brake configurations engineered for stable movement of multiple ULD types.

Benefits

• Stability and safety for apron handling operations.
• Versatile loading options to accommodate a variety of pallet/ULD formats.
• Increased operational efficiency through robust, purpose-built design.

Technical characteristics / specifications

• Model: PD-44R
• Load capacity: 7000 kg
• Maximum width: 3350 mm
• Maximum length: 2700 mm
• Top deck height: 508 mm (20")
• Type / variant: Wide end tow roller deck (side loading)
• Typical compatible pallets / ULD: 125" x 96", 125" x 88", 108" x 88", 2 x LD1, 2 x LD3, 2 x DQF, 2 x ALP
• Brake/steering options: parking brake (inboard drum hubs), optional turntable steer, over-run brakes, anti step-over barrier, auto reverse braking systems
• Material / finish: high-grade tensile steel construction, pressed steel fabrication, galvanised chassis
• Standard safety feature: wind catcher finger stops for upward and lateral restraint
