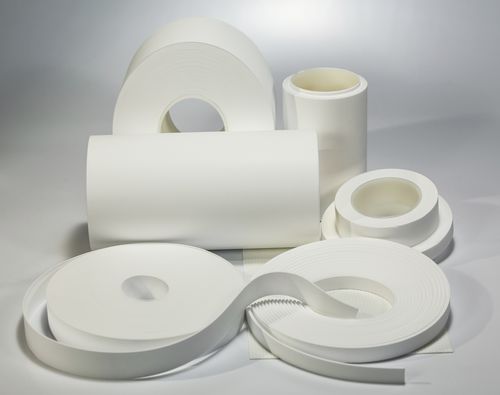

Film PTFE ZITEX G
for the aerospace industry

film PTFE
film PTFE
Add to favorites
Compare this product


Characteristics

Shape
film
Other characteristics
for the aerospace industry
Width

Max.: 254 mm
(10 in)

Min.: 0 mm
(0 in)

Thickness

Max.: 0.38 mm
(0.015 in)

Min.: 0.1 mm
(0.004 in)

Operating temperature

Max.: 260 °C
(500 °F)

Min.: -268 °C
(-450.4 °F)

Description

A porous form of PTFE (polytetrafluoroethylene), Zitex G exhibits the same chemical inertness, thermal stability and non-wetting characteristics of this outstanding fluoropolymer. Zitex G structures are able to handle virtually any corrosive fluid at temperatures as high as 500oF (260oC) and as low as the cryogenic range of -450oF (-268oC). With pore sizes in the approximate range of 1 – 6 microns, thicknesses from 0.004 – 0.015 inch (0.10 – 0.38mm), and widths up to 10 inch (254mm), Zitex G can be used as a self-supporting membrane in a wide variety of particle filtration applications in aggressive environments. Inherently hydrophobic, Zitex G prevents passage of liquid solutions (below initiation pressure) while allowing free passage of gases. This characteristic makes Zitex G an ideal venting material for liquid packaging. Zitex G can be laminated to plastic closures and other substrates for such applications as cap liners. Due to its hydrophobicity, chemical resistance, and gas permeability, Zitex G is used by electrochemical gas sensor manufacturers as a diffusion membrane. Zitex G can also be manufactured to custom dimensions and profiles up to 0.25” (6.3mm) thick and 6” (152mm) wide having controlled density and mechanical properties to meet industry requirements for use in aircraft engine seal applications. Surface treatment is also available to facilitate enhanced adhesive bonding to substrates. From aerospace to automotive, laboratory to medical, packaging to pharmaceutical, electrical to engineering, you can put CHEMFILM Zitex G membranes to work for you. Features Chemical inertness Thermal stability Hydrophobicity High wet strength Non-contaminating

Catalogs

ZITEX ® G
ZITEX ® G
1 Pages
