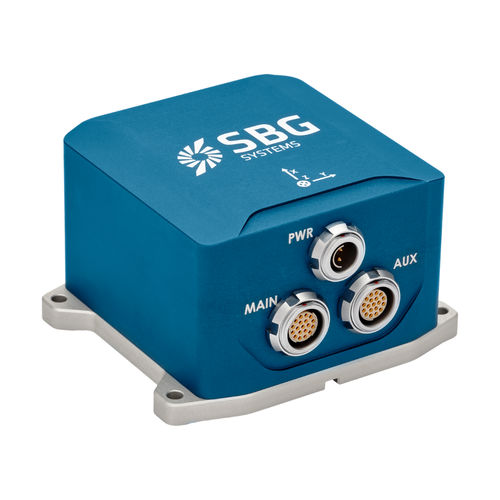

IMU inertial system Ekinox-EINSGNSSfor drones
Add to favorites
Compare this product
Characteristics
- Type
- IMU, INS
- Options
- GNSS, for drones, for avionics instruments, with integrated dual-antenna GPS
- Temperature range
Min.: -40 °C
(-40 °F)Max.: 75 °C
(167 °F)
Description
Ekinox-E additionally accepts aiding data from external GNSS receiver to provide navigation.
The Ekinox-E has been designed to connect up to 4 external aiding systems, including DVL or DMI. This highly versatile inertial navigation system provides orientation, heave, and navigation data.
» 0.02° Orientation (rtk)
» 0.05° Heading with external GNSS
» 1 cm Position when connected to RTK GNSS
» Post-processing with Qinertia PPK Software
» 5 cm Heave, 2.5 cm Delayed Heave
» Ethernet, Serial, and CAN Interfaces
KEY FEATURES
» Up to 4 connected equipment
» Survey Grade GNSS receiver (Ekinox2-D)
» 8 GB Data Logger
» IP68 Enclosure
» Web Interface & Ethernet
» 200 Hz Output Rate
» Synchronize survey device with PTP Server» High Performance Inertial Systems
» ITAR Free
» Cost-effective & Robust MEMS technology
» Maintenance Free
+ Navigation With External GNSS
