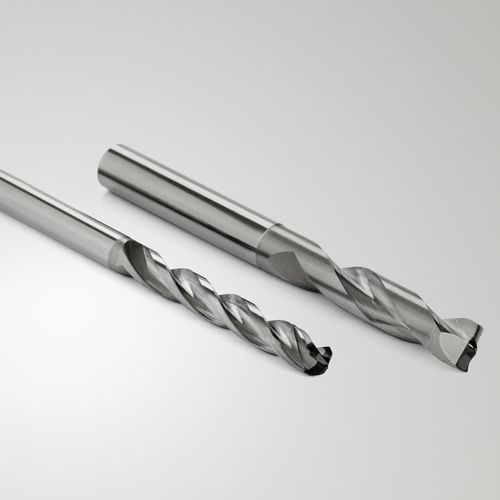

Solid drill bit Seco Feedmax™ C1 & C2
for metalsfor compositesdiamond

solid drill bit
solid drill bit
solid drill bit
solid drill bit
Add to favorites
Compare this product

Characteristics

Type
solid
Dispensed product
for metals, for composites
Material
diamond
Other characteristics
for aeronautics
Diameter

Max.: 12.73 mm (0.5 in)

Min.: 3.2 mm (0.13 in)

Description

SECO FEEDMAX - COMPOSITE DRILLS Seco offers two distinct solutions for composite drilling: diamond-coated drills and polycrystalline diamond (PCD) drills. These tools feature geometries that are optimized specifically for regular composites or stacked materials. For drilling through plain composite materials, C1 and CX1 applies a double-angle geometry to redirect axial forces in a way that reduces uncut fibers and delamination in composite-only applications and applications with an exit in composite material. The C2 and CX2’s flat-geometry drill point machines stacked composite materials that incorporate layers of aluminum or titanium. With a drill point angle of 180 degrees , the geometry provides efficient chip breaking and evacuation. This reduces the risk of metal chips damaging the hole when transitioning between layers of metal and composites, keeping the surface finish of the composite intact. Both C1 and C2 are diamond-coated carbide drills featuring a Dura diamond coating that provides very good toughness and abrasive resistance to ensure long tool life. They can be used in CNC and handheld drilling machines. CX1 and CX2 are polycrystalline diamond (PCD) drills that offer enhanced productivity and tool life over conventional drills when machining composite materials. Diameter range 3.2 – 12.726 mm (.126 - .501 inch) for C1 and C2. Diameter range 3.26 – 9.53 mm (.128 - .375 inch) for CX1 and CX2.
