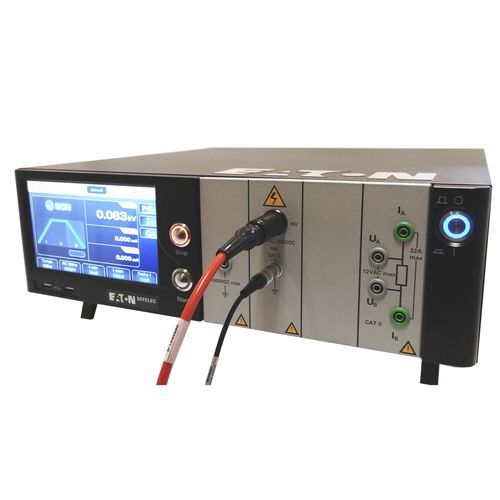

AC hipot tester SEFELEC 506-H

AC hipot tester
AC hipot tester
AC hipot tester
Add to favorites
Compare this product


AC, aeronautical, DC


Dielectric withstand at 5kVAC 500VA and 6kVDC Detection modes with Min/Max current thresholds or flashover detection (ΔI) Burning function without current detection Programmables test ramps Rise, dwell, fall Multi-ramp mode, up to 7 steps 7” TFT Multi touchscreen 16 million colors for programming, tests and results display ARM-Dual core control & Nand 3D technologies inside for more accuracy, stability and repeatability DSPs speeds up measurements and production tests Large internal memory for configurations and test results storage IEC 61010-2-034 full compliance, specific safety standard for insulation and dielectric strength meters The SEFELEC 506-H is a new generation EATON dielectric strength tester (hipot) tester based and controlled by ARM-Dual Core and DSP technologies providing the best stability and repeatability. The high accuracy and measurement speed are suitable for quality control or incoming inspection departments. The sequence mode makes the SEFELEC 506-H easier to use and integrate in a control or a test-bench. The new SEFELEC Series HMI, with its 7” dual-touch TFT screen, offers simple and intuitive operations. Native Ethernet / RS232 / USB / PLC / CAN IEEE488-2 Interface as on option CAN Bus to drive extension modules (Scanners) SIL2 double safety loop Automatic measurement range selection Sequence mode to combine several successive tests


No catalogs are available for this product.

See all of Sefelec‘s catalogs
