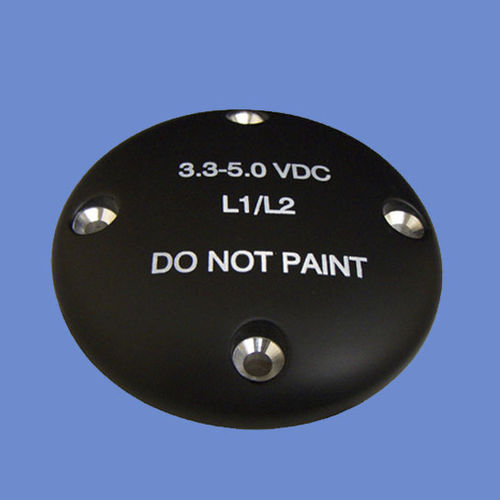

Aircraft antenna S67-1575-863

GPS

Dual-band L1/L2 GPS active antenna provides coverge at 1227.6 MHz and 1575.42 MHz with a VSWR of 2.0:1. The 26.5 dB amplifier operates in a voltage range of 3.3 to 5.0 volts DC and is integrated under the radome. Additional filtering provides significant out-of-band rejection and reduced possiblity of saturation by non-GPS signals. DC bias is provided through the coax connector. The spherical-radius, molded radome provides enhanced protection against rain, ice and lightning strikes. Qualified for high-speed military aircraft. Designed for use with PLGR, DAGR, and MAGR systems. NSN: 5985-01-528-5187 FEDERAL & MILITARY SPECS: MIL-STD-810, MIL-HDBK-5400, DO-160, TSO-C129.
