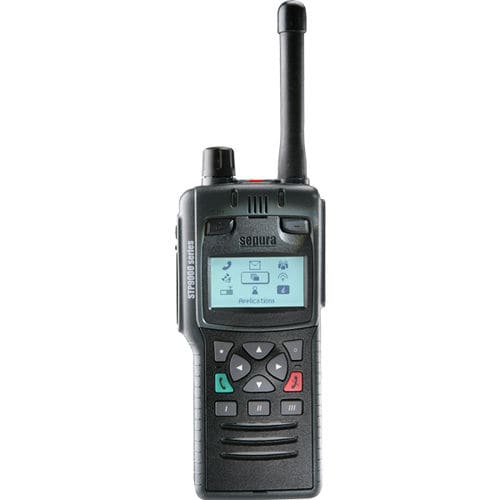

Radio transceiver STP9200
UHFfor aircraftfor airport

radio transceiver
radio transceiver
Add to favorites
Compare this product


Characteristics

Other characteristics
radio transceiver
Network
UHF
Domain
for aircraft, for airport
Other characteristics
portable

Description

With IP67 environmental protection - continuing to work after submersion in up to 1m of water for up to 30 minutes - the STP9200 boasts powerful audio, exceptional battery life and safety-enhancing features such as Wake-on-Alarm, which switches the radio on and initiates an emergency call with one touch of a button. An entry-level TETRA radio offering powerful audio and RF, extreme ruggedness, the STP9200 offers a simple, easy to use interface, perfect for gloved use. DIMENSIONS Height: 133mm Width: 61mm (54mm) Depth: 32mm (standard battery) Depth: 37.5mm (high capacity battery) WEIGHT With standard battery: 250g With high capacity battery: 275g FREQUENCY BANDS 344-400MHz – STP9235 380-430MHz – STP9238 407-473MHz – STP9240 806-870 MHz – STP9280 POWER SUPPLY 7.4V (nominal) lithium polymer battery packs Intelligent reporting batteries 1160mAh standard battery 1400mAh mid-capacity battery 1880mAh high capacity battery RF PERFORMANCE RF Power: MS power class 3L (1.8 Watts) RF Power customisable for : TMO/DMO/REP Adaptive power control supported Receiver class A & B Receiver static sensitivity -112dBm (-115dBm typical) Receiver dynamic sensitivity -103dBm
