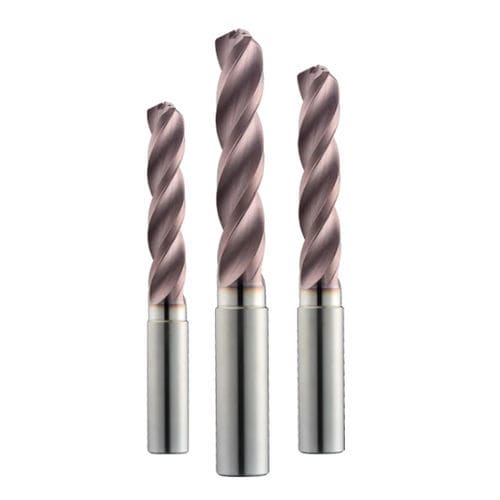

Solid drill bit 140 series
for steelfor stainless steelfor aeronautics

solid drill bit
solid drill bit
solid drill bit
Add to favorites
Compare this product


Dispensed product
for steel, for stainless steel
Other characteristics
for aeronautics

Max.: 19.05 mm (0.75 in)

Min.: 3 mm (0.12 in)


Max.: 243 mm (9.57 in)

Min.: 66 mm (2.6 in)


The design of the ICe-Carb Series 140 was created to bring end users the ability to achieve higher performance results with higher production demands. The internal coolant design allows for better control of machining temperatures during these types of applications, while the geometry features provide effective and efficient chip creation and removal. The results of the Series 140 design are reduced cutting loads, increased operation parameters and enhanced tool life. FEATURES & BENEFITS Coolant Through Design Promotes controlled and consistent operating temperature Improves coolant flow to the cut while maintaining strength Increases tool life at increased operating parameters High-Performance Flute Design Optimized open fluting Improved surface finish through effective chip evacuation Polished Ti-NAMITE-A coating Reduces friction between the chip and tool preventing the impediment of chip flow Decreased machine loads associated with chip clogging Reduce friction reduces heat and abrasion wear High Penetration 140 Degree Point Geometry Split point geometry for improved drill penetration and accuracy Cam relief drill point Self-centering design with high penetration capabilities Engineered Cutting Edges Precisely ground with a curvature that allows efficient chip creation and control Controlled edge honing for longevity Negative corner position strengthens and protects PRODUCT DETAILS Shank Diameter - 6,0-20,0 (5XD) Flute Length - 28,0-101,0 (8XD) Flute Length - 34,0 - 190,0 (5XD) Cleared Length - 23,0-77,0 (8XD) Cleared Length - 29,0 - 160,0 Shank Length - 36,0-50,0 Coating - Ti-NAMITE-A MATERIAL APPLICATIONS STEEL ≤ 45 HRc STAINLESS STEEL ≤ 45HRc HIGH TEMP ALLOYS
