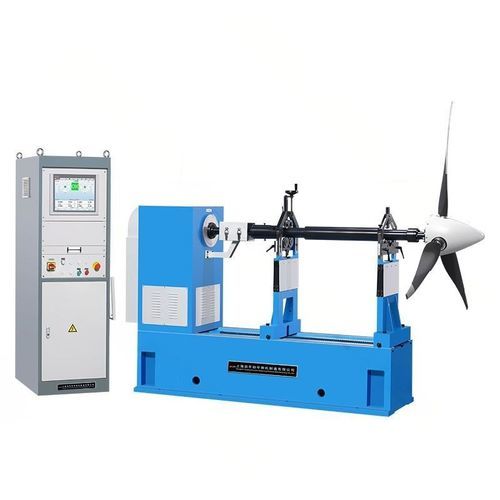

Horizontal balancing machine PHW-160H

electricmanualfor aeronautics

Application: It is used for the unbalance correction of rotating workpieces such as small-sized motor rotors, blowers, centrifugal impellers, drying cylinders, and rollers. Features: This machine adopts Jianping measuring system, dynamic and static balancing are both available, bearing modes are up to 10 kinds, weight addition & removal, CW and CCW rotation can be flexibly customized, unbalance amount and angle display units can be customized to achieve real-time unit conversion to meet different customer needs. Adopt universal coupling or gear box transmission, can obtain a variety of balancing speed or stepless speed regulation. Applicable to Small workpieces - Technical data at a glance - PHW-160H - PHW-300H - PHW-500H - Mass Scope of Workpiece(kg): 160, 300, 500 - Max Diameter of Workpiece(mm): Φ1000, Φ1200, Φ1500 - Distance Between Two Support Bearings(mm): Min 60 - Journal Diameter Scope of Workpiece(mm): Φ15~75 - Max Distance between Driving Flange and Right Bearing Support (mm): 1500 - Rotational Speed of the Main Axis(r/min): 600,1095 - Motor Power (kw): 3, 3, 4 - Torque of Universal Joint Shaft(N·m): 60 - Length of Bed (mm): 2500 - Min Achievable Residual Unbalance Amount(emar): ≤0.5g· mm/kg - Stepless speed regulation
