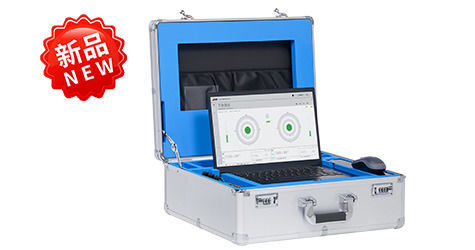

Horizontal balancing machine DM-4

electrichigh-precisiontwo-plane

Application The portable balancing machine is suitable for on-site dynamic unbalance detection of rotating workpieces such as large-sized fans, impellers, and machine tool spindles. Product features The DM-4 portable balancing machine developed by Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd. is compact in size, light in weight, and easy to carry. The AC and DC dual-purpose power supply makes it effortless for you to conduct tests under any conditions. DM-4 is a dual-channel vibration analyzer integrating data acquisition, vibration analysis and on-site dynamic balancing. Paired with ODBI W5000 software, it provides a complete solution for predictive maintenance and features high efficiency and high precision. The vibration accuracy of DM-4 reaches 5%, the angle accuracy is ±1°, the speed accuracy is 0.1% or ±1 Rpm, the maximum range is ±100m/s², and the resolution is 3×16bit. It can provide high-precision measurement data, ensuring the accuracy of balance measurement and providing a reliable guarantee for the stable operation of the equipment. Technical data at a glance - Balancing Speed: 600-60000rpm - Correction Plane: 1 or 2 with storable influence coefficients for repeated balancing - Features: Single-and double-plane balancing; vibration analysis (spectral analysis, power spectrum analysis, and cepstrum analysis); Point inspection function; Printing function; Customization function (customized according to user needs) - Measurement Channels: 2 measurement channels as standard - Print: Support computer printing of files - Power Supply: Battery: Lithium-ion battery (24V/6Ah); Rechargeable battery: Operating life: Minimum 8 hours - Dimension: External dimensions: 500 x 370 x 180 mm (L x W x H); Inner dimensions: 485 x 355 x 165 mm (L x W x H) - Weight: 10.5kg
