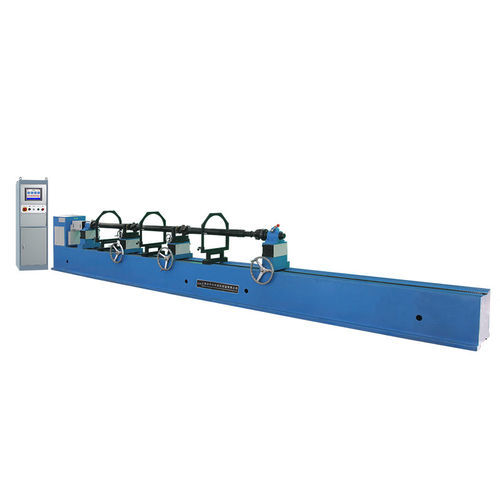

Horizontal balancing machine PHCF-100

electricfor aeronauticshigh-precision

Application The drive shaft balancing machine is a special equipment used to check the unbalance of various drive shafts. Features - The brackets designed by Jianping can transmit mechanical force, which is firm and reliable, with low vibration damping and good rigidity. - The sensor has good linearity, durable and reliable. - Jianping Electronic measurement system, friendly HMI. Two and Three Piece Drive Shaft Balancing machines Technical data at a glance PHCF-100 PHCF-350 Max Mass of Workpiece (kg) 100 350 Effective length of workpiece (mm) 4000 4000 Max Diameter of Workpiece (mm) Φ130 Φ130 Shaft tube diameter of workpiece (mm) Ø120 Ø120 Balancing speed (mm) 3200 3200 Motor Power (KW) 2.2 2.2 Universal joint torque (N.M) 60 60 Min Achievable Residual Unbalance Amount (e mar) ≤2.5g ≤2.5g Length of bed (mm) 7000 7000 Once reduced rate (%) ≥90 ≥90 1) Stepless speed regulation 2) Frequency conversion - Application: Checking unbalance of drive shafts - Brackets: High rigidity, low vibration damping - Sensor: Good linearity, durable - Measurement system: Electronic, user-friendly HMI - Max mass: 100 kg (PHCF-100), 350 kg (PHCF-350) - Effective length: 4000 mm - Max diameter: 130 mm - Shaft tube diameter: 120 mm - Balancing speed: 3200 mm (stepless speed regulation) - Motor power: 2.2 KW (frequency conversion) - Universal joint torque: 60 N.M - Min residual unbalance: ≤2.5g - Bed length: 7000 mm - Once reduced rate: ≥90%
