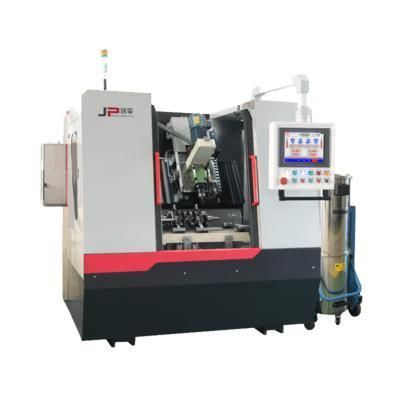

Horizontal balancing machine A1WZ2Q

electricmanualautomatic

Application It is used for the unbalance correction of automobile four-cylinder crankshafts and six-cylinder crankshafts. Features - Manual loading & unloading - 15 inch touch screen - Advanced balancing machine measurement software - Automatic measurement, automatic drilling & correction, automatic retest - The workpiece can be corrected more than twice - Soft bearing high-precision balancing measurement system - Rigid machine tool structure design, high service life Technical Specifications Balancing Unit Parameter - Max Mass of Workpiece (kg): 30 - Max Length of Workpiece (mm): 600 (Four Cylinder) / 800 (Six Cylinder) - Max Diameter of Workpiece (mm): 150 (Four Cylinder) / 200 (Six Cylinder) - The Distance Between Two Bearing Pedestals (mm): 400 - Journal Diameter on Roller Carriages (mm): 35-60 - Max Balancing Speed (r/min): 1000 - Motor Power (kw): 1.5 - Min Achievable Residual Unbalance Amount (g.mm/kg): 5 Drilling Unit - Drilling Speed (r/min): 1500 - Cutting Spindle Motor Power (kw): 0.75 - Max Allowed Correct Times: 2 Machine Parameter - Machine Motor Power (kw): 8 - Machine Weight (ton): 3.5 - Dimensions (mm): 2000*1800*2200 - Pressure (Mpa): 0.4-0.8 - Takt Time (s): 150-180
