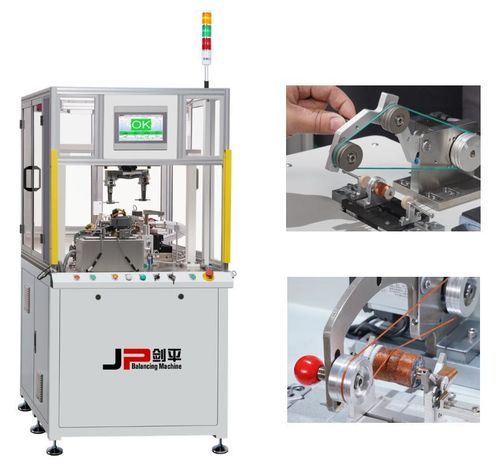

Horizontal balancing machine A2WZ2-0.3

electricpneumaticautomatic

Application It is mainly applied to the unbalance measurement and correction of rotors and those rotors which require weight removal on the end surface, and can integrate with rotor assembly line to realize automatic production. Features - Balancing and weight removal is one-time completion, one machine just requires one person. - Fast production cycle time, higher once reduction ratio. - Convenient for product changeover, just replace the product fixture and adjust the sensor position. - HMI with memory function for production capacity and real-time production information. - Rigid structure design, high service life. Technical Data at a Glance Main Components - Cylinder: SMC. - Sensor: KEYENCE, OMRON. - Servo motor: Panasonic - Control PLC: SIEMENS - Touchscreen: Nuodajia - Measuring System: Shanghai Jianping Rotor Diameter Range - The rotor weight less than 0.5KG. - Length of Iron core: 20-60mm - Diameter of rotor: 25-40mm Balancing Speed - 1000-3000rpm Milling Method - Double cutter drilling Power - AC380V Pneumatic - 0.4-0.6Mpa Residual unbalance eccentricity - G=6.3 Dimension - 1130*1200*1700mm Technical Specifications / Features - Balancing and weight removal in one operation - Single operator required - Fast production cycle - Easy product changeover - HMI with memory for production data - Rigid, durable structure - Main components from SMC, KEYENCE, OMRON, Panasonic, SIEMENS, Nuodajia - Suitable for rotors <0.5kg, iron core length 20-60mm, rotor diameter 25-40mm - Balancing speed: 1000-3000rpm - Double cutter drilling method - Power: AC380V - Pneumatic: 0.4-0.6Mpa - Residual unbalance: G=6.3 - Dimensions: 1130*1200*1700mm
