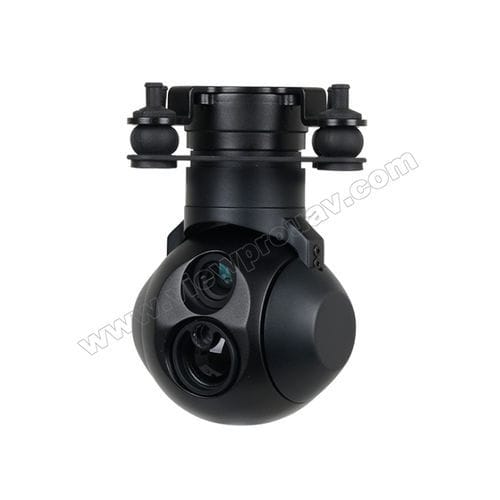

Thermal imaging camera U8L

trackingfor drones

Integrated high-precision uncooled long wave (8|jm ~14pm ) thermal image sensor, U7DER can record and transmit thermal image and visible images at the same time in PIP format. The advanced location calculating algorithm is used to calculate the distance of the object within 1500 meters, accurately analyze the longitude and latitude of the object, and display them on the screen. It has a great auxiliary rôle in the enforcement of police. Compatible with Mavlink and KLV metadata. Supports Viewlink, VStation, MissionPIanner, QGC, SmartAP video stream output. Hardware Parameter Working voltage - 12V(3S) Output voltage - 5V (connect with PWM) Dynamic current - 650~1000mA @ 12V Idle current - 650mA @ 12V Working environment temp. - -20℃~+60℃ Output - IP rtsp (1080p 30fps) Local-storage - SD card (Up to 128G,class 10, FAT32 or ex FAT format) Photo storage format - JPG(1920*1080) Video storage format - MP4 (1080P 25fps) Control method - TTL / S.BUS/ TCP Gimbal Spec Angle scope of structure design - Pitch/Tilt: -60°～120°, Yaw/Pan: ±360°*N Angle scope of software design - Pitch/Tilt: -45°～90°, Yaw/Pan: ±360°*N Vibration angle - Pitch/Roll: ±0.02°, Yaw：±0.02° One-key to center - √ EO Camera Spec Resolution - 1920*1080 @60fps Focus Length - 8mm Angle of View - 38°*22° EO Camera Object Tracking Update rate of deviation pixel - 60Hz Minimum object contrast - 5% Minimum object size - 16*16 pixel Maximum object size - 128*128 pixel Tracking speed - ±48 pixel/frame Object memory time - 100 frames IR Laser Rangefinder Range - 5~1500 meters Resolution - 1:<400±1 2:＞400±0.4%
