Dynamic focus and dynamic brightness adjustment provide sharp, uniform images for different object heights, code positioning and transport speeds
Minimum object gaps and high package throughput in the sorting process via an integrated tracking function
Modular system design: from low-cost to high performance
Intelligent decoding algorithms and a high image recording frequency provide excellent read rates, even with codes that are difficult to read
Ability to combine multiple products to create a tailored hybrid solution
Read adjacent objects with "side-by-side” focusing, which increases the throughput
Easy installation due to the slim, sophisticated design and partial pre-assembly

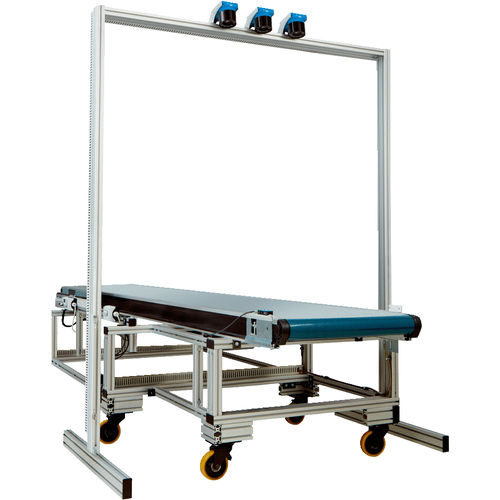

The track and trace system based on the Lector65x matrix camera reliably identifies and decodes all common types of codes.
With up to a 4 megapixel CMOS sensor, the Lector65x has the resolution to read all object sizes from large to small. Thanks to the dynamic focus, unique for matrix cameras in world, and the dynamic brightness adjustment, the Lector65x System produces highest quality images. These images could even be used for other vision related tasks. With an integrated tracking function, object gaps can be reduced, increasing the overall throughput on the conveyor or sorting system. Building on the MSC800 networking concept, the Lector65x System can easily be combined with other products, such as ICR8xx line-scanning cameras, volume measurement systems, laser-based code readers, or weigh scales. This allows the best possible solution to be generated for each challenge.
At a glance
Dynamic focus adjustment
Big depth of field in fix focus operation
Tracking function with MSC800
