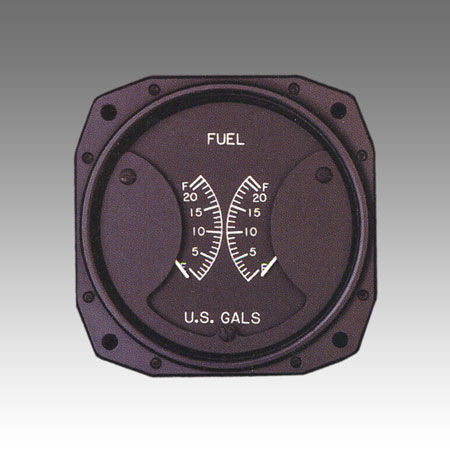

The 1U432 dual fuel gauge is packaged as a compact, 3” instrument. It has dual D’Arsonval movements that are driven by two resistive bulb transducers in the fuel tanks. The two opposing pointers stand out sharply from the non-reflective black background. Height: 3.25" Width: 3.25" Depth: 1.82" (max) Weight: 0.5 lbs. Markings: Matte white Finish: Flat black Mating Connector MS3106A-14S-5S Pin Out Pin A: 24 VDC Pin B: Left Signal Pin C: Ground Pin D: 14 VDC Pin E: Right Signal Environmental Characteristics Temperature: - -30° to 50° C Vibration: - - CPS: - 5 to 50 - Maximum Double Amplitude: - 0.020 in. - Maximum Acceleration: - 1.5 G's Humidity: - 0% to 95% at 32° C Altitude: - 0 to 40,000 ft.
