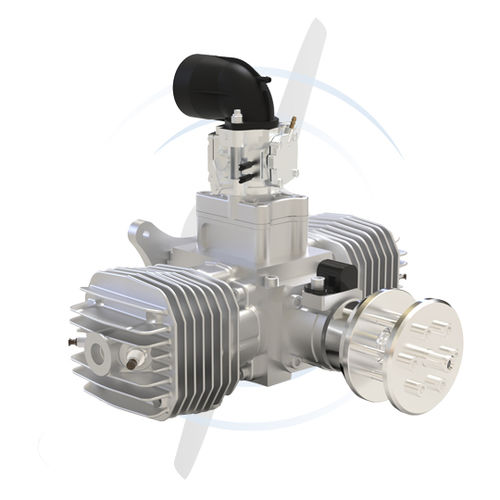

The SP-210 series is designed with twin spark plugs and can be equipped with a carburetor or a fuel injection. The generator is mounted on the rear output shaft. All engines are equipped with the ignition HKZ215 and the ECU030. The electronics of the HKZ215 can be installed on an additional system carrier which sits on top of the cylinders. The engine is available with or without system carrier.
Versions:
SP-210 TS
SP-210 FI TS
SP-210 HF FI TS
Specifications SP 210 FI TS:
Type: 2-Cylinder Gas-Engine
Capacity: 210 ccm / 12.81 cu in
Power: 14.75 HP / 11.0 KW @ 5500 RPM
Torque: 18 Nm @ 5500 RPM
Bore diameter: 2.16 inch (55.00 mm)
Stroke: 1.77 inch (45.00 mm)
Speed Range: 2200 - 6500 RPM
Crankshaft: 4 ball bearing
Oil/Gasoline ratio: 1:50 / 2 % mix
