Turning chuck PTF series
for aeronautics

turning chuck
turning chuck
turning chuck
turning chuck
turning chuck
turning chuck
Add to favorites
Compare this product


Characteristics

Applications
turning
Other characteristics
for aeronautics
Clamping range

Min.: 1,000 mm
(39.37 in)

Max.: 2,000 mm
(78.74 in)

Description

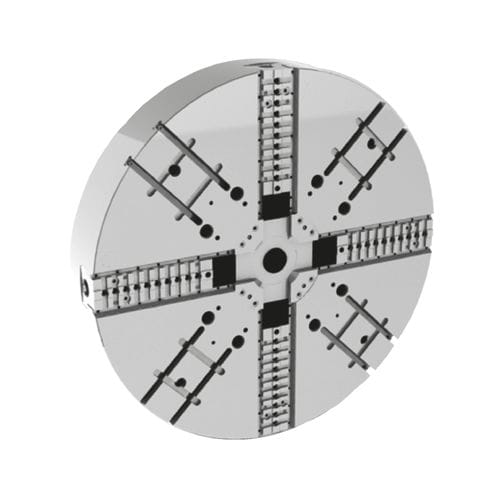

TONGUE & GROOVE MANUAL CLAMPING AND RADIAL SETTING OF JAWS Closed center 4 jaws (all diameters) Application/customer benefits • Clamping of large round, square and irregular parts • Manual, radial setting of component and manual clamping • Suitable for vertical machines. Strong body and master jaws design and option to easily mount a strong center point • High gripping force allowed by the strong design, with the option to increase it with a torque multiplier • TONGUE & GROOVE master jaws (type “American Standard”) Technical features • Manual gripping force applied by a strong and protected screw on a strong and rigid master jaw • Manual and fi ne setting of master jaws for workpiece centering • Protection from contamination with seals along the master jaw profi les • Possibility to use jaw boxes for manual clamping mounted on the T-slots between the master jaws Standard equipment 4 jaws independent manual chuck 1 set of soft top jaws 1 regulation and actuation key 1 grease gun and 500g grease Ordering example 4 jaws independent chuck PTF 1600 / Z720 Id. No. 77137063 Option: 5:1 torque multiplier Id. No. 13506320
