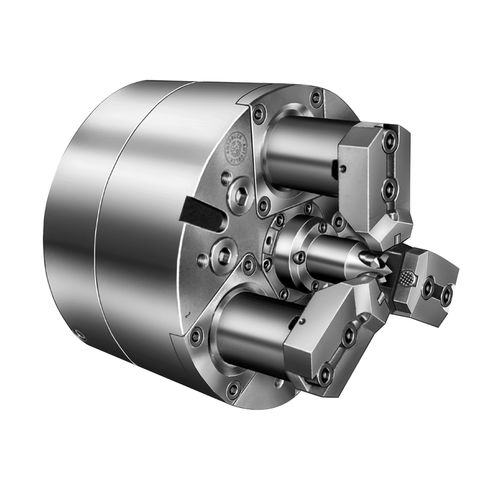

Turning chuck GSA series

for aeronautics

SHAFT CHUCK WITH RETRACTABLE JAW FACE DRIVER Shaft turning chuck Compensating jaw clamping Face driver with fixed or spring loaded center proofline® chucks = fully sealed–low maintenance Shaft turning chuck ■ Compensating jaw clamping ■ Face driver with fi xed or spring loaded center ■ proofl ine® chucks = fully sealed – low maintenance Application/customer benefits • Complete machining of shafts in one operation • The rough machining is done with compensating jaws clamping • Finish machining of the complete outline with the face driver at retracted jaws Technical features • Retractable jaws • Compensating jaws clamping • Face driver adjustable with adjusting wedges • Center point fi xed or spring loaded • Pull down of the workpiece to the axial reference, ensures high position accuracy • Case hardened internal parts • Constant grease lubrication • proofl ine® chucks = fully sealed – low maintenance Standard equipment Shaft chuck without face driver with mounting bolts Axial reference in the center point - power operated face driver Actuation via double piston cylinder type ZHVD-SZ or DCN Axial reference on the component face - spring operated face driver Actuation via long stroke cylinder type SIN-L
