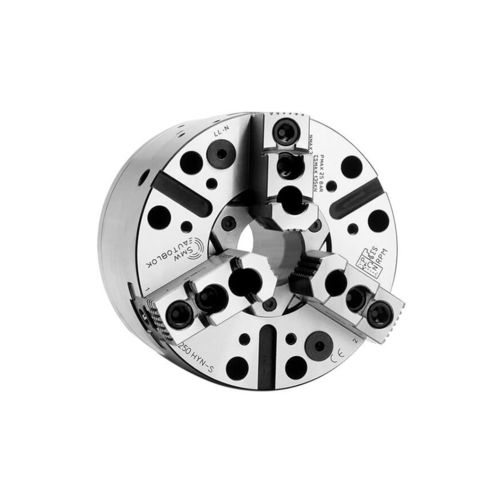

Turning chuck HYND-S seriesfor aeronautics
Add to favorites
Compare this product
Characteristics
- Applications
- turning
- Other characteristics
- for aeronautics
- Clamping range
Min.: 180 mm
(7.09 in)Max.: 400 mm
(15.75 in)
Description
INCH SERRATION
Hydraulic front end chuck
Oil feed through spindle wall
3 and 4 jaws
Application/customer benefi ts
• Machining of bars / shafts
• Complete spindle bore can be used
• For machines with rotary tables and special machines
Master jaws with INCH SERRATION (1/16” x 90°)
Technical features
• Power chuck with big through hole, wedge hook design
• Built in cylinder with safty valves
• Chuck body case hardened
• Special mounting dimensions on request
Standard equipment
3 or 4 jaw chuck
1 set T-nuts with bolts
1 set of top jaws
Mounting bolts
Ordering example
3 jaw chuck HYND-S 210-53-3 A06 or 4 jaw chuck HYND-S 250-66-4 Z140
