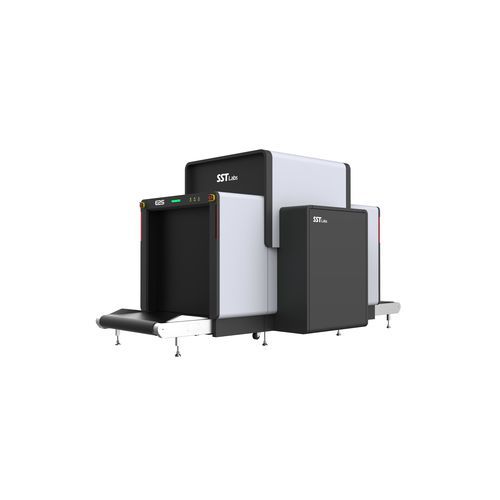

Checked luggage scanner E2S 1000 DV

for cargoinspectionfor airport

Product overview
E2S 1000 DV (Dual View) is a mid-sized bidirectional X-ray screening system engineered for checked-baggage and bulky-item inspection in high-throughput environments such as international airports, shipping docks and major logistics hubs. The system combines Dual-View geometry with material-analysis imaging and onboard AI threat detection to support fast, reliable screening of large volumes of luggage.

Key features

• Dual-View imaging (vertical and horizontal beams) to reduce blind spots and overlapping shadows.
• Built-in AI detection identifying 350+ object types across 35 categories with mission-specific tuning.
• Dual 180 kV generators, typical 36 mm steel penetration, and up to 256× dynamic zoom plus 3× image magnifier (Lupa).
• Reinforced bidirectional conveyor with 1,002 mm × 1,002 mm tunnel and 200 kg maximum payload; multiple speed settings (0.2 / 0.3 / 0.4 m/s; option 0.5 m/s).
• Hardened Linux cybersecurity platform with biometric (fingerprint) access and OTP support for auditable user roles.
• 120 Hz flicker-free dual displays to reduce operator fatigue during extended shifts.

Imaging and AI
The system provides dual-energy 4-color material classification with extensive image processing: distortion correction for long scans, color/B&W/negative display modes, organic/inorganic material ID, suspect-materials enhancement, high/low penetration, super enhancement, edge enhancement, ABS+/ABS- density adjustments, and powerful continuous zoom and magnification tools for detailed analysis.

Specification

• Model: E2S 1000 DV (Dual View)
• Tunnel dimensions: 1,002 mm (W) × 1,002 mm (H)
• System dimensions: 3,590 × 1,630 × 1,824 mm
• Packing dimensions (approx.): 3,740 × 1,780 × 2,000 mm
• Conveyor speeds: 0.2 / 0.3 / 0.4 m/s (option 0.5 m/s)
• Conveyor height: 300 mm (adjustable)
• Max conveyor load: 200 kg
• Conveyor type: Drum motor, bidirectional, auto-stop (option: energy saving)
• Net weight / Gross weight: 1,400 kg / 1,550 kg
• Construction: Steel with lead shielding
• Scan direction: Bi-directional (forward and reverse)

Technical specifications

• Wire resolution: Standard 38 AWG / Typical 40 AWG
• Steel penetration: Standard 32 mm / Typical 36 mm
• Spatial resolution: Horizontal 1.0 mm / Vertical 1.0 mm
• Material classification: Dual energy, 4-color
• Beam direction: Dual View (vertical & horizontal)
• Max scan length: Up to 5 m continuous scan
• Processing: Distortion correction, long scan (5 m)
• Generators: Dual 180 kV
• Tube current: 1.0 mA
• Cooling / Duty cycle: Sealed oil cooling, 100% duty cycle
• Processor: Intel Core i7 or higher, 16 GB RAM
• Storage: 4 TB HDD (expandable); image storage 100,000+ images
• Image recall: Auto 100 images / Max 200 images
• Monitors: 2 × 24" LED (default) / option 27"; resolution 1920×1080; refresh 120 Hz
• Zoom: Up to 64× continuous zoom; 256× dynamic continuous zoom; 3× image magnifier (Lupa)
• Security features: Hardened Linux platform, fingerprint authentication, OTP support
