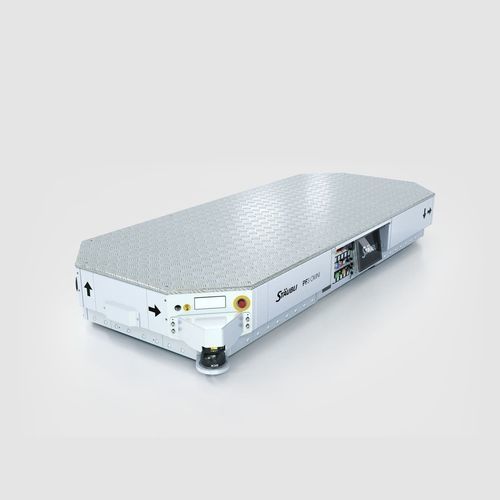

Automated transfer vehicle PF3 OMNI

AGVfor airport warehouse

Overview
Stäubli designs and manufactures modular mobile robot platforms for industrial intralogistics and heavy handling. Over 20 years the series has delivered agile, omnidirectional motion for automated transport. The portfolio covers payloads from 1.5 t up to 450 t, positioning precision ±5 mm and configurable drive concepts. Stäubli fleet software synchronizes vehicle fleets and provides data-driven insights for optimized operations.

Main features and benefits

• Agile motion
• Patented drive unit
  • Smart, highly reliable technology to reduce downtime and total cost of ownership
  • No infrastructure adaptation costs
• Modular design
  • Lift unit: electric spindle, electric scissor or hydraulic cylinder
  • Conveyor: integration with plant conveyors to link production stations
  • Swap body: movable containers for parking and material-flow management
  • Housing: protective enclosure for inter-building transport
• Safe motion: advanced safety functions for human–AGV collaboration
• Fleet control software: synchronized fleet operation with performance and diagnostic data
• Omnidirectional motion: high agility for flexible intralogistics scenarios

Main features (highlights)

• Payload range: from light platforms up to very high payloads (series covers 1.5 t to 450 t)
• Positioning precision: ±5 mm
• Drive concepts: tricycle for compact units; omnidirectional drive for most variants
• Laser navigation available across the platform family
• Cleanroom production variants for sensitive environments

Applications

• Automotive: press shop, assembly lines, e‑battery assembly
• Heavy industry and metalworking
• Industrial intralogistics: single and multi-pallet transport
• Railway production and rolling-stock component handling
• Aeronautics: handling of high-value parts
• Renewable energy: transport of heavy/fragile components for wind and solar
• Paper industry: paper roll transport
• Semiconductor: cleanroom-capable mobile robots
• Plastics: injection molding automation
• White goods and household appliance manufacturing

Technical specifications (table)
Platform | PF3 | PF3 OMNI | PF6 | PF10 | PF30 | PF80
Max payload (tons) | 3 | 3 | 6 | 10 | 30 | 80
Dimensions L x B x H* (mm) | 1750 x 996 x 350 | 2400 x 1035 x 350 | 2390 x 1320 x 360 | 3000 x 1755 x 350 | 3650 x 2135 x 560 | 4150 x 2665 x 660
Drive type | Tricycle | Omnidirectional | Omnidirectional | Omnidirectional | Omnidirectional | Omnidirectional
Max speed (m/s) | up to 1.6 | up to 1.1 | up to 1.1 | up to 1.1 | up to 1.4 | up to 1.4
Laser navigation | ✓ | ✓ | ✓ | ✓ | ✓ | ✓
* Without lift unit

Technical specifications

• Manufacturer: Stäubli
• Series: Mobile Robot Platform Series
• Payload capability (series): 1.5 t to 450 t (portfolio coverage)
• Example models and max payloads: PF3 (3 t), PF3 OMNI (3 t), PF6 (6 t), PF10 (10 t), PF30 (30 t), PF80 (80 t)
• Example dimensions: PF3 = 1750 x 996 x 350 mm; PF80 = 4150 x 2665 x 660 mm (without lift unit)
• Positioning precision: ±5 mm
• Drive types: Tricycle (PF3); Omnidirectional (PF3 OMNI, PF6, PF10, PF30, PF80)
• Max speeds: up to 1.6 m/s (PF3); up to 1.1–1.4 m/s depending on model
• Navigation: laser navigation across platform family
• Lift unit options: electric spindle, electric scissor, hydraulic cylinder
• Modularity: configurable conveyors, swap bodies, housings and other add-ons
• Safety: embedded safety functions for human–AGV collaboration
• Software: fleet control software for synchronized operation and data-driven insights
• Special versions: cleanroom variants available for sensitive environments
