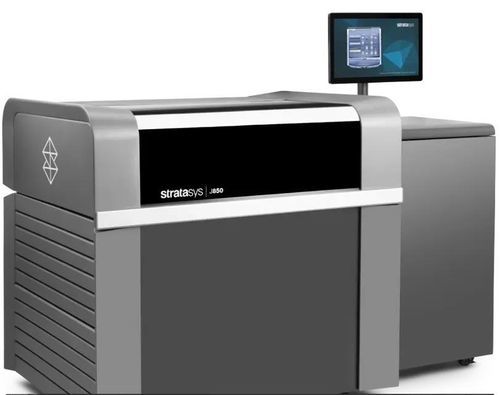

Metal 3D printer J850™ Core

plasticPolyJethigh-speed

Overview
J850™ Core makes professional PolyJet 3D printing more accessible for engineering teams and prototyping labs that need fast, accurate, multi-material prototypes without full-color capability. Built for versatility, functionality, and affordability, it enables realistic multi-material prototypes that support form, fit, and functional validation.

Key Features

• Three-material printing: combine multiple materials in one part for overmolding, seals, snap fits, and transparent elements.
• Large build tray: 490 x 390 x 200 mm build volume supports large parts or efficient batch production.
• Fast print modes: includes High Quality and High Speed print modes for quick turnaround and higher throughput.
• GrabCAD Print Pro workflow: automatic nesting, layout optimization, and job presets to streamline print preparation.
• Material versatility: supports rigid, flexible, transparent, and tough engineering materials, including ToughONE™-compatible materials.

Benefits

• More accessible professional PolyJet capabilities focused on core engineering needs rather than full-color complexity.
• Functional prototypes with rigid, flexible, transparent, and tough materials in the same print.
• Faster iteration cycles supported by high-speed modes and large tray capacity.
• Simplified, office-friendly workflow with minimal post-processing and GrabCAD Print Pro support.
• Competitive pricing and cost efficiency while maintaining core PolyJet capabilities and high throughput.

Typical Applications

• Functional prototyping: validate form, fit, function, and assembly with accurate multi-material parts.
• Consumer product development: rapid iteration for housings, enclosures, wearables and refined product concepts.
• Automotive prototyping: durable components, flexible seals, and interior prototypes for engineering validation.
• Medical device prototyping: complex instruments, housings, and multi-textured prototypes for evaluation before tooling.

Materials
Supports essential PolyJet materials for realistic functional prototyping, including PolyJet ToughONE™, VeroUltra™, VeroUltra™Clear, Agilus30™ and other rigid, flexible and transparent resins suitable for engineering prototypes.

Technical specifications

• Model name: J850™ Core
• Technology: PolyJet™ multi-material 3D printing
• Material channels: up to 3 base resins simultaneously (three-material printing)
• Build volume / tray size: 490 x 390 x 200 mm (19.3 x 15.35 x 7.9 in.)
• Build modes: High Quality (up to 3 base resins, 14-micron resolution), High Speed (up to 3 base resins, 27-micron resolution)
• Layer thickness / resolution: horizontal build layers down to 14 microns (0.00055 in.)
• Support materials: SUP705B™ (listed as support material on product page)
• Software: GrabCAD Print (GrabCAD Print Pro workflow support)
• System size and weight: System: 1400 x 1260 x 1100 mm (55.1 x 49.6 x 43.4 in.); 430 kg (948 lbs.)
• Material cabinet size and weight: 1119 x 656 x 637 mm (44 x 25.8 x 25.1 in.); 153 kg (337 lbs.)
• Operating conditions: Temperature 18–25 °C (64–77 °F); relative humidity 30–70% (non-condensing)
• Power requirements: 100–120 VAC, 50–60 Hz, 13.5 A, 1 phase OR 220–240 VAC, 50–60 Hz, 7 A, 1 phase
• Network connectivity: LAN – TCP/IP
• Accuracy: Typical deviation from STL dimensions for models printed with rigid materials — under 100 mm: ±100 μ; above 100 mm: ±200 μ or ±0.06% of part length, whichever is greater.
• Regulatory compliance: CE, FCC, EAC (as listed)
