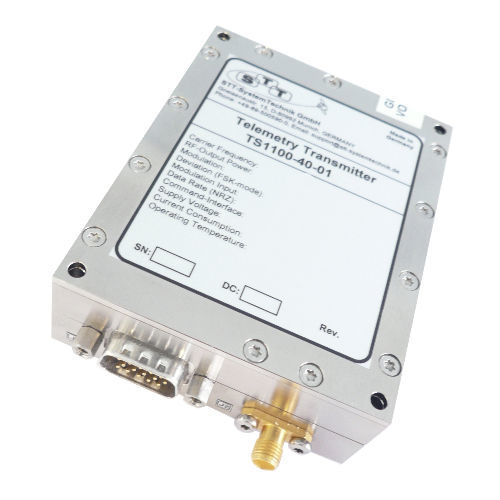

TS1100 Multimode Transmitter
The rugged multimode Telemetry Transmitters Series TS1100 offers PCM/FM, SOQPSK and multi-h modulation schemas. They are designed for operation within industrial, military and aerospace environments. The highly reliable and rugged design meets perfectly today's demands for small size, lightweight and high efficiency. STT's TS1100-series synthesizer controlled, multimode telemetry transmitters are best suited for transmitting wideband digital multiplex signals, video or telemetry. These transmitters are designed to meet IRIG-106 standards. There are several options available to meet specific frequency, data rate, modulation, programming, output power and environmental performance requirement.
1) IRIG Randomizer
2) Pre-Modulation Filter, remote programmable
Frequency Range - 2200 to 2500 MHz
Frequency Selection - within 100MHz band programmable in 100kHz steps
Frequency Stability - ≤ ± 0,002%
Output Power - 1 to 10 Watts, min.
Output Impedance - 50 Ohm
Harmonics, Spuria - ≤ -60 dBc
Open/Short Protection - yes, by internal isolator
Turn-on start-up time - 1 sec. max.
Type - PCM/FM, SOQPSK, multi-h
Input - Data + Clock
- TTL or RS-422
Signal Range - 1 to 40 Mbps (NRZ)
Power Supply - 24 … 32 VDC
Rev. Voltage Protection - yes, by internal serial diode
Overvoltage Protection - for spikes up to 50 V/10 ms
Power Consumption - 0.9A , typ. @ 28VDC (5 Watts)
RF Connector - SMA -f
Mod./Power Connector - HD-SUB 15
