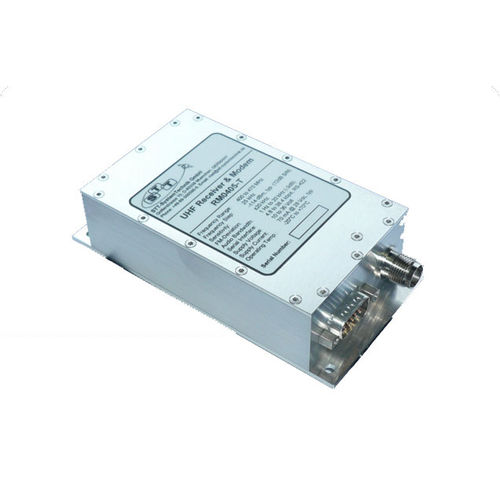

UHF video receiver R0405
for aircraft

UHF video receiver
UHF video receiver
UHF video receiver
Add to favorites
Compare this product


Characteristics

Network
UHF
Domain
for aircraft

Description

The miniature UHF-Band FM Telemetry / Telecommand Receivers Series R0405 are designed for operation within industrial, military and aerospace environments. The highly reliable and rugged design meets perfectly today's demands for small size, light weight and high efficiency. STT's R0405- series crystal controlled, true FM telemetry receivers are best suited for receiving narrowband or wideband telecommand, video or telemetry data. NOTE: There are several options available to meet application specific requirements. Please do not hesitate to send us your inquiry for your specific needs. RF-Input Frequency Range - 390 to 470 MHz Synthesizer Step Width - 25 kHz Sensitivity - -108 dBm (12 dB SINAD) @ 100 kHz Modulation Type - FM FM-Deviation - up to ±200 kHz Frequency Response - 10 Hz to 200 kHz DC-Power Power Supply - 10...36 VDC Power Consumption - 50 mA , typ. @ 28 VDC Connectors RF-Connector - SMA or TNC Data-/Power Connector - HD-Sub 15 Physical Data Dimensions - 120 x 60 x 22 mm (L x W x H) Weight - approx. 200 grams

Catalogs

No catalogs are available for this product.

See all of STT-System Technik‘s catalogs
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
