Radio transceiver SSTRC-1000

for aircraft

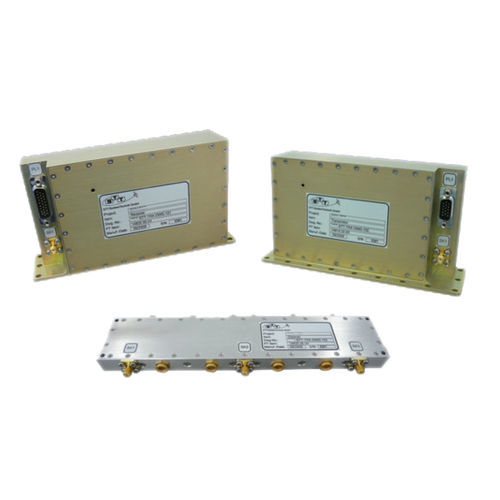

The SSTRX-1000 S-Band Satellite Transceiver features an extremely compact and robust design. It has been designed to operate very reliably within the severe environments of satellites and other space vehicles and has been qualified for the use within LEO-satellites. The SSTRX-1000 System operates in the S-Band frequency band. It is optimized for bi-directional transmission of commands and telemetry data between the ground station and the satellite. The SSTRX-1000 Transceiver System consists a BPSK Telemetry Transmitter, a Telecommand Receiver with integrated a Bit Synchronizer/Data Regenerator and a Diplexing Filter Carrier Frequency - in range 2200 to 2290 MHz Frequency Stability // Aging - ±10ppm // 1ppm/a Transmit Power - 100mW to 5W (10W optional) Modulation - 10 kbps to 4 Mbps (BPSK) Carrier Suppression - 30 dBc Spuria/Harmonics - -60 dBc Phase Noise - 2° rms Supply - 20 to 36VDC Power Consumption - 18 Watts, typ. (at 5W o/p power) Dimensions - 170 x 90 x 49 mm incl. mounting flange Weight - 730 grams Carrier Frequency - in range 2025 to 2110 MHz Frequency Stability // Aging - ±10ppm // 1ppm/a Modulation - 2/4 kbps on 8/16 kHz subcarrier, 8 to 256 kbps SP-L BER 10-6 - -118 dBm typ. (at 4 kbps) Supply - 20 to 36VDC Power Consumption - 2.5 Watts, typ. Dimensions - 170 x 90 x 38 mm incl. mounting flange Weight - 750 grams
