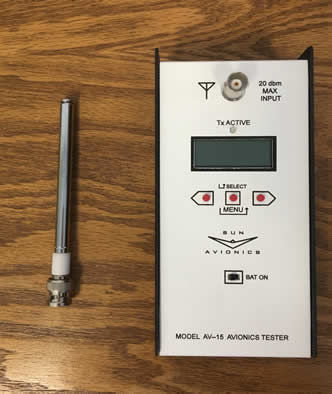

Avionics tester AV-15
aeronautical

avionics tester
avionics tester
Add to favorites
Compare this product


Characteristics

Applications
avionics
Other characteristics
aeronautical

Description

Operating Temperature Range ( -20 to +50 deg C ) Storage Temperature Range ( -30 to +70 deg C ) - Accuracy of All Carrier Frequencies; Basic accuracy= +/- 2.5 PPM plus +/-1.0 PPM aging per year. Variation over temperature= +/- 2 PPM over -20 c to +50 C range. - Output Power; ADF = -12 +/-3 dbm VOR= -10 +/-3 dbm ILS Localizer= -10 +/-3 dbm ILS GS = -17 +/-3 dbm ILS MKR = -15 +/-3 dbm DME = -12 +/-3 dbm TXPDR = -12 +/-3 dbm COMM = -10 +-3 dbm VOR radial accuracy; +/- 1 deg ILS localizer DDM accuracy; +/- 10% ILS glide slope DDM accuracy; +/- 10% DME accuracy; +/- 0.1NM -
