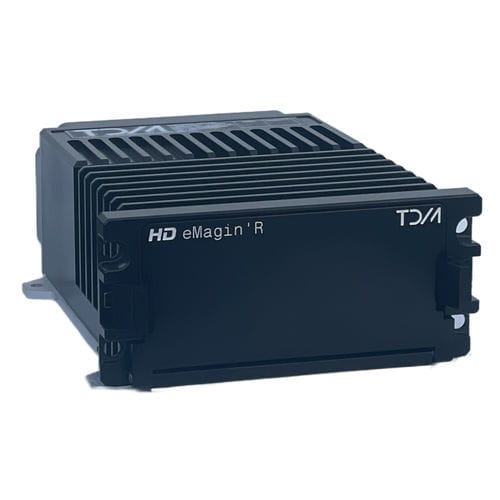

Analog video recorder EMaginR

for aircraft

Weight: 1.9 kg | Dimension : 66.3mm x 181mm x 145mm | Operating temperature : -40°C to +55°C | Power supply: 18V to 36V | Input transient : 80V/100ms | Energie Loss : 50ms | Consumption : 25W Attributs de l’EMaginR : High quality H264 video compression solution for 4 videos in very low latency (<60ms) Simultaneous acquisition of 4 video inputs chosen from 12 possible: 4 SMPTE HD/SD SDI, 4 NTSC/PAL and 4 RGB/YUV. Acquisition of a stereo analog audio input and/or the audio stream embedded in the SDI video. Acquisition and encapsulation of metadata and GNSS data. High quality and low quality compression (with or without cropping and/or resizing) for each video channel. Recording capacity of 24 hours for 4 videos or 96 hours for 1 video. Possibility of simultaneous viewing of the 4 video channels by several users. Equipment already on-board of combat aircraft
