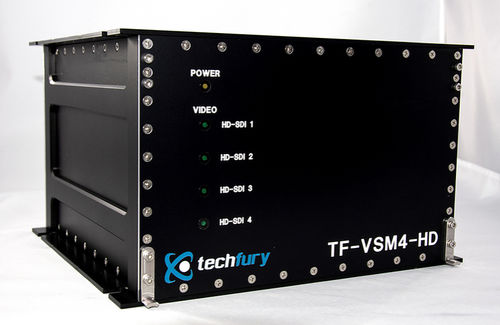

Video switch matrix TF-VSM4-HD
compactfor aircraft

video switch matrix
video switch matrix
video switch matrix
video switch matrix
video switch matrix
Add to favorites
Compare this product


Characteristics

Type
video
Applications
for aircraft
Other characteristics
compact

Description

4-Channel HD Video Matrix Switcher FEATURES: Four Channel HD-SDI/3G-SDI Tactical High-Definition Video Matrix Switcher Switch between all four cameras / inputs in full screen or QUAD view on any monitor / output DZUS Mounted Video Select Panels for simple and seamless switching between cameras’ Single connector for all four VSP’s OR independent connections per output on 38999 Series connectors Video, Fault and Power LED’s on front panel for debugging Operational Temperature -40° C to +185° C Compact Design measuring in at 9.5in (L) x 10.5in (W) x 6.5in (H) with J-Hooks and top/bottom mounting points. Tested to the same standards as MIL-STD 810G qualificatoins Overview: Techfury Video Systems is proud to introduce our new Four Channel High-Definition Video Matrix Switcher, TF-VMS4-HD, specifically designed in collaboration with Avionics Engineers and Tactical Pilots to bridge the increasing gap for a simple video management system which allows multiple users to view multiple cameras on multiple monitors. Each user can select any camera in full screen or all four cameras in a quad view allowing for each user to monitor all targeted area. Use the DZUS Mounted Video Select Panels for easy and seamless switching between cameras. Couple the TF-VMS4-HD with our four-channel high-definition DVR, TF-TDR4-HD, to record and view all cameras on independent internal and external media drives in the event of an incident or training purposes.
