Rugged 3G-SDI Camera
Military Grade 7075-T6 Aluminum Housing – IP67 Rated - MIL-A-8625 Type II Anodized
Single Mil-Spec Output Connector for video/data & power
Full High Definition 3G-SDI / HD-SDI Resolutions up to 1920x1080
Panasonic 1/3” Imaging Sensor
Dual Simultaneous Outputs of 3G-SDI/HD-SDI and Analog/CVBS
Anti-Vibration mechanism (internal)
Miniature Size of 80mm x 30mm x 30mm
Multiple Lens Options (3.7mm Standard)
Auto Day/Night Setting
Operating Temperature: -30° to +85° Celsius
Power Input: 12VDC, MAX 150mA

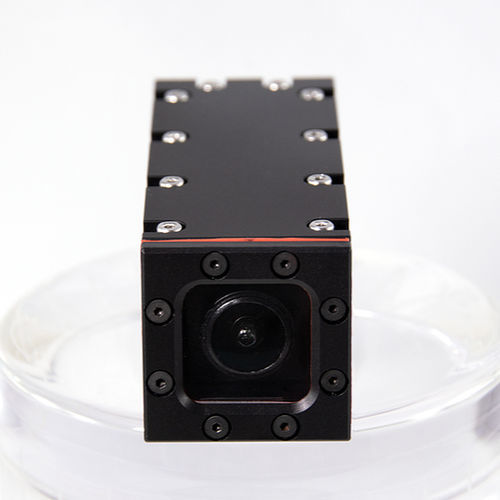

The TF-HCF-CAM is the smallest Military Grade 3G-SDI/HD-SDI camera available on the market. Milled out of a solid piece of 7075-T6 aluminum, the TF-HCF-CAM is rugged enough to be installed and operated in any Military or commercial application. While measuring at only 80mm x 30mm x 30mm the TF-HCF-CAM can be installed in tight areas using the robust mounting bracket included with the camera. With dual simultaneous outputs, the TF-HCF-CAM can be used with multiple devices at the same time where the 3G-SDI/HD-SDI output can connect to a DVR and the analog output can be used to view the live feed on a Garmin G500 or similar monitor.
The TF-HCF-CAM features a Panasonic 1/3” Imaging Sensor which outputs a 2MP image in high definition. The TF-HCF-CAM comes in a variety of lens options which provide specific field of views ranging from extremely narrow to ultra-wide. The electronic shutter helps preserve the image quality when capturing fast moving objects with minimal image distortion, image blur and shutter noise.
