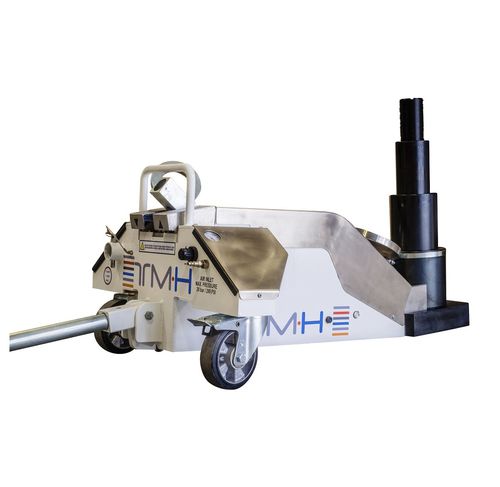

Aircraft jack TMH AJ60

hydraulicpneumatic

Description and features
Typical aircraft application:

• NLG: A300, A310, A320 CEO family (A318, A319, A320, A321) + NEO, A330, A340-200-300, A350-900-1000, B707, B727, B747, B757, B767, B777, B787-8-9, L1011
• MLG: A300, A310, A320 CEO family (A318, A319, A320, A321) + NEO, A330, A340-200-300, B707, B727, B737 NG (all types) & B737 CL (all types), B747, B757, B767, B787-8-9, L1011, MD11, DC10
• CLG: A340-200-300-500-600

Main features:

• Hydraulic lifting by hand pump and/or hydropneumatic pump
• Pneumatic lifting control (operator safety device)
• Automatic descent speed control (loaded and unloaded)
• Dual-flow hand pump
• Manometer

Download PDF:
Technical datasheet available: TDS TMH AJ60.pdf

Technical data / specifications:

• Capacity: 66.1 ton US (588.5 kN)
• Closed height: 9.5 in (244 mm)
• Extended height: 27.5 in (698 mm)
• Hydraulic stroke: 13 in (330 mm)
• Screw extension: 5 in (124 mm)
• Female hemispherical point diameter: 1"1/2 (38 mm)
• Fluid type: MIL-H-5606 mineral oil
• Operating temperature: -13°F to +122°F (-25°C to +50°C)
• Dimensions L × W × H: 44 × 22.5 × 15 in (1120 × 576 × 375 mm)
• Weight: 355 lb (161 kg)
