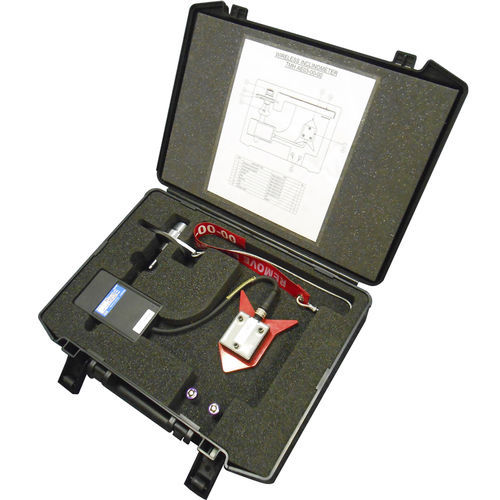

2-axis inclinometer TMH AE03digitalfor aircraftfor the aerospace industry
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Number of axes
- 2-axis
- Output signal
- digital
- Applications
- for aircraft
- Domain
- for the aerospace industry
- Temperature range
Min.: -4 °F
(-20 °C)Max.: 176 °F
(80 °C)
Description
Dimensionss l × w × h - 16 × 12 × 4 in
Weight - 5.5 lb
Power input - lr6 aa 1,5v alkaline batteries
Description and features
Typical aircraft application:
Measure: any type aircraft

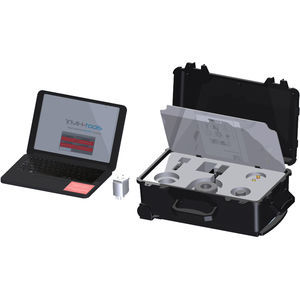

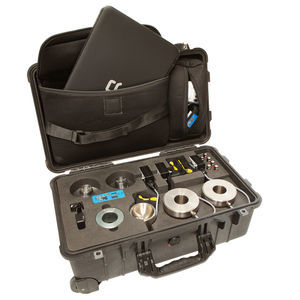

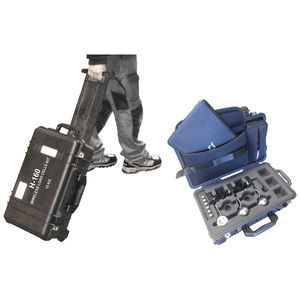

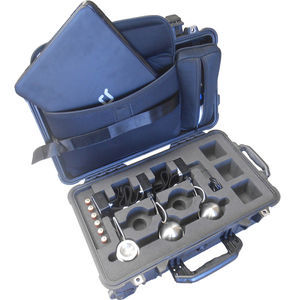

Associated wireless weighing load cells kit: TMH AE20-00-00, TMH AE30-00-00, TMH AE40-00-00, TMH AE50-00-00, TMH AE70-00-00, TMH AE80-00-00
Main features:
Complement of load cells for a perfect and fast leveling of the aircraft during maintenance operations
2 wifi pro transmitters (one for each axis) together in a box poweredby 2 aa lr6 1.5v batteries
1 lock pin system
2 possible use positions of the inclinometer
The pc software of the load cells kit allows
the ‘‘on/off’’ switch,
simultaneously the reading of the angular and the load values, a visual and sound alarm goes on when reaching the tilt threshold,
the reading of the battery level
