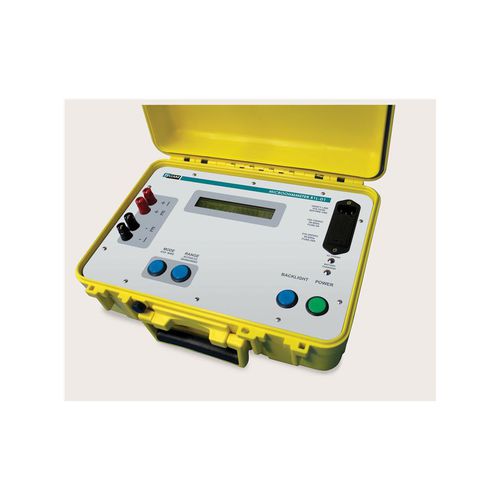

Portable milliohmmeter R1L-D1

4-wirefor the aeronautical industry

Low Current Microohm and RTD Meter10 µΩ to 2 kΩThe Model R1L-D1 is a portable Microohmmeter and RTD monitor for measuring low resistance values with high accuracy. It is optimized for measuring 100 and 1000 Ω 3 and 4-wire RTDs, and utilizes the 4-wire technique to eliminate errors caused by the connection resistances. The R1L-D1 calculates the value of the resistor under test, and indicates the value on a LCD. 2 and 3-wire measurement methods can also be selected. To maintain accuracy, an automatic zero circuit turns off the test current and resets the zero of the instrument prior to each resistance reading. This also serves to null out any thermally-generated voltages in the test leads or in the resistance being tested.Technical SpecificationsRugged: MIL-PRF-28800F Class 3Portable: Longest Rechargeable Battery Life (140 Hour)Ranges: 200 mΩ to 2 kΩ (Auto & Manual)High Accuracy: 0.05% of readingResolution: 1 µΩ2, 3 or 4-wire measurementOffset CompensationBack Lit DisplayNSN: 6625-01-456-91253 year warrantyMade in USA
