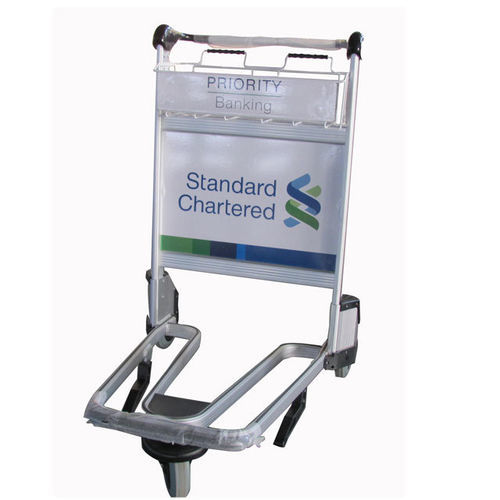

Airport terminal luggage trolley AL-83

3-wheelopenaluminum

Product Brief

• Loading capacity: 200–250 kg
• Overall dimensions: L 1000–1020 mm × W 670–675 mm × H 1000–1050 mm
• Basket size: 525 × 220 × 150 mm

Introduction
This airport baggage trolley is designed for passenger terminals to transport luggage and light cargo inside airport buildings and between gates. The 3-wheel configuration improves maneuverability over curbs and inclined surfaces. The frame is manufactured from 6063 high-strength aluminum alloy to combine low weight and structural rigidity. The trolley integrates an auto handle brake for quick and reliable parking.

Product Parameters

• Product name: Aluminum alloy 3 wheels airport baggage trolley with brake
• Material (frame/body): 6063 high-strength aluminum alloy
• Basket dimensions: 525 × 220 × 150 mm
• Big advertising board size: 525 × 354 mm
• Brake type: Auto handle brake
• Wheel: 180 mm diameter, natural rubber
• Basket material: Powder coated steel or stainless steel
• Handle: Ergonomic flat handle with fish-shape connector

Applications

• Passenger terminals (airports, train stations)
• Gate and ramp baggage handling
• Logistics and baggage transfer inside terminals

Model & Codes

• Model: AL-83
• Brand: CHEERONG
• HS Code: 87168000

Packing and Delivery
Packing details: bubble foam and wooden board protection. Packing quantity: 118 pcs per 20'GP; 254 pcs per 40'HQ. Delivery: typically 2–5 weeks after order confirmation; lead time may vary with order volume and customization.

Certificates & Warranty
This product is produced under ISO9001 quality management (ISO9001:2008) and has passed SGS inspection. The manufacturer holds multiple design/material patents for aluminum alloy airport trolleys and has over ten years of manufacturing experience. Standard warranty: one year.

Technical Specifications

• Model: AL-83
• Brand: CHEERONG
• Loading capacity: 200–250 kg
• Overall length: 1000–1020 mm
• Overall width: 670–675 mm
• Overall height: 1000–1050 mm
• Material (frame/body): 6063 high-strength aluminum alloy
• Basket dimensions: 525 × 220 × 150 mm
• Big advertising board size: 525 × 354 mm
• Brake type: Auto handle brake
• Wheels: 180 mm diameter, natural rubber
• Basket material: Powder coated steel or stainless steel
• Handle: Ergonomic flat handle with fish-shape connector
• Packing: Bubble foam + wooden board
• Packing quantity per container: 118 pcs / 20'GP; 254 pcs / 40'HQ
• Typical delivery time: 2–5 weeks after order (subject to quantity)
• Certifications: ISO9001, SGS
