above-ground portion of stop bars
Certificate basis
ICAO-AERODROMES-ANNEX 14 VOLUME I, 3rd edition-1999
FAA AC 150/5345-46 B
MAK
Description/properties

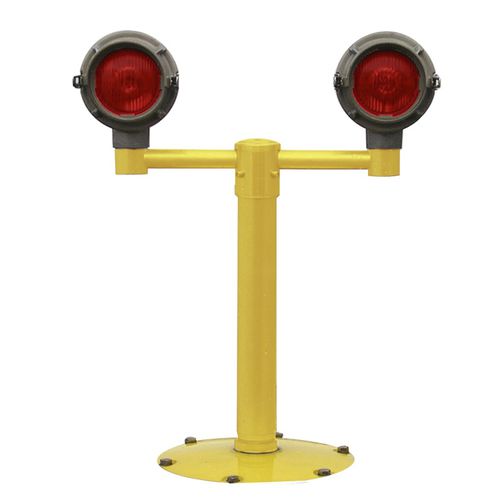

pair of elevated unidirectional lights EL 217 (producer ERNI) fixed to the supporting console
lights emits red light
made of cast and pressing of Al alloys, glass pressing and switching components of stainless steel
light is supplied fixed to the supporting console, including halogen bulbs and supply cables with connectors
Construction
frangible T-bar
special sleeve (latching portion)
complete of pipes along with breacable
coupling
reflector EL 217
Connection/supplying
powered via isolation transformer from the constant current regulator series circuit
Mechnical parameters
weight 4,6 kg
dimensions
optical height 600 mm
horizontal pitch 381 mm
adjustability
horizontal 0°–360°
vertical from 0°–20°
