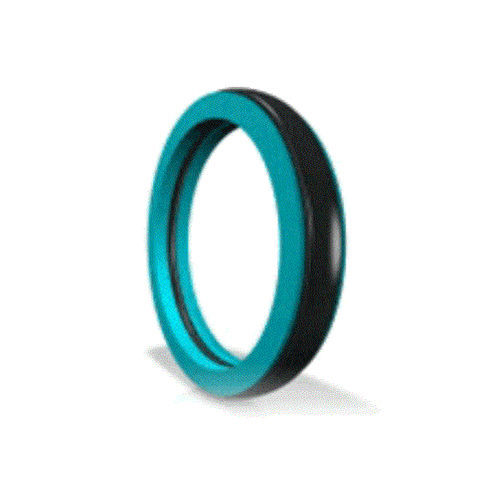

Lipped seal Turcon® Wedgpak®
circulargroovedtriangular

lipped seal
lipped seal
lipped seal
lipped seal
lipped seal
lipped seal
lipped seal
Add to favorites
Compare this product


Characteristics

Type
lipped
Configuration
circular, grooved, triangular
Material
elastomer
Applications
for aircraft
Other characteristics
static, dynamic, custom
Temperature limit

Min.: -54 °C (-65 °F)

Max.: 200 °C (392 °F)

Pressure limit

35 MPa

Description

The Turcon® Wedgpak® consists of a proprietary triangular elastomer sealing element, supported by two Delta shaped Back-up Rings, that prevent the elastomer sealing element from spiralling or rolling under severe working conditions. The small elastomer contact area of the Wedgpak® design, results in a slipper seal type performance, with low static and dynamic friction. At the same time, the elastomer wipes the surface efficiently, providing excellent leakage control. The Wedgpak® Back-up Ring provides support and extrusion protection for the elastomer sealing element. A full range of sizes are offered to suit all MIL-G-5514F and AS4716 grooves. Custom designs available on request.
