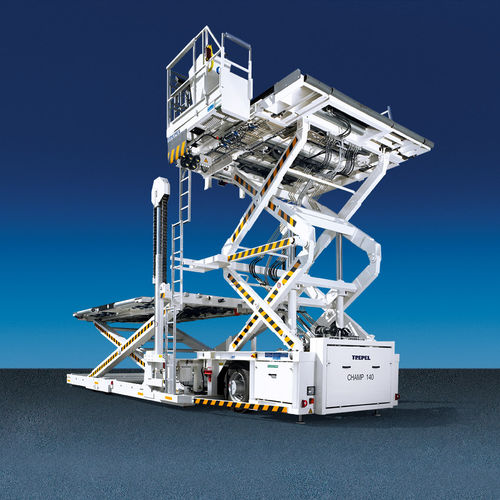

Scissor high loader CHAMP 140

freightdieselelectric

The CHAMP 140 combines the advantages of a lower and main deck loader with excellent reliability. Due to its bogie wheel system on its rear axle, the CHAMP 140 is easy and safe to manoeuvre. Additional features and options make sure the CHAMP 140 meets all customer requirements. The CHAMP 140 handles all pallets and containers up to a weight of 14 tons and a length of 20 feet at lower and main deck level. With its high performance and availability the CHAMP 140 runs for top handling procedure. Freight handling with higher quality. Performance Dimensions (L x W x H) 11.400 x 4.400 x 3.900 mm (standard configuration) Lifting height front / main platform 1.900 to 5.600 mm / 485 to 5.600 mm Loading width (between guide rails) 3.250 mm Driving speed 15 km/h Gradability 5 % Turning radius 13.000 mm Design Engine Deutz 4-cylinder diesel TCD 2012 L04 2V (COM IIIA / EPA-TIER3) Other engines or emission class on request. Transmission / axles Open circuit hydrostatic drive system on steering front axle, bogie wheel system on rear axle Steering Hydraulic power steering Braking system Dual circuit hydraulic multiple disc brake, additional spring-loaded emergency parking brake, dynamic brake system Stabilisers 6 hydraulically operated stabilisers Conveying system Zinc-plated steel rollers for longitudinal transfer, side loading and rotating on rear of main platform, side loading on front of main platform, hydraulically operated stops and guide rails on main platform Hydraulic system Central hydraulic valve block, valves fitted with control light, electrically powered hydraulic emergency system to lower platforms and lift stabilisers Electric system 24V, relay controlled
