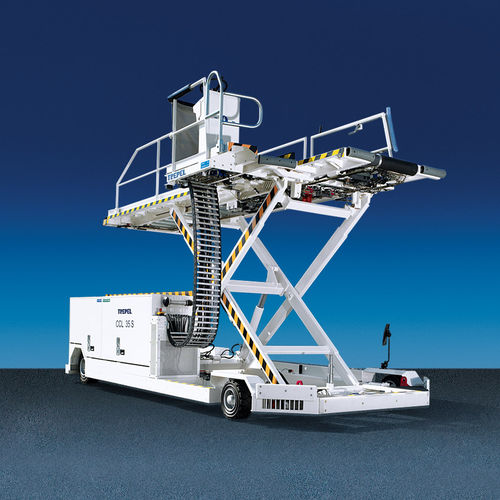

Scissor high loader CCL 35 S

freightdieselelectric

The CCL 35 S combines two vehicles in one – cargo high loader and transporter. Developed in the nineties for handling the A320 family, the CCL 35 S today is able to handle freight on all lower decks of commercial aircraft. The dolly train with containers can be parked anywhere around the aircraft, allowing the CCL 35 S to act as a junction to transfer containers between the dollies and the aircraft. This is a user-friendly and manoeuvrable loader-transporter allowing quick and economical freight loading and unloading. With several options available, the CCL 35 S is one of the most popular pieces of equipment on the apron today. Freight service at a faster level. Performance Dimensions (L x W x H) 6.520 x 2.900 x 1.600 mm (standard configuration) Lifting height platform 485 to 3.500 mm Loading width (between guide rails) 1.620 mm Driving speed 15 km/h Gradability 5 % Turning radius 8.500 mm Design Engine Deutz 4-cylinder diesel D 2011 L04 (COM IIIA / EPA-TIER3) Other engines or emission class on request. Transmission Closed circuit hydrostatic drive system on rear wheel hub motors Steering Hydraulic power steering Braking system Dual circuit hydraulic operated drum brakes on rear wheels, additional spring-loaded multiple disk emergency parking brake Platform system Single platform with tilting system Conveying system Zinc-plated steel rollers for longitudinal transfer, side shift system on front of platform, hydraulically adjustable guide rails Hydraulic system Central hydraulic valve block, valves fitted with control light Electric system 24 V, relay controlled
