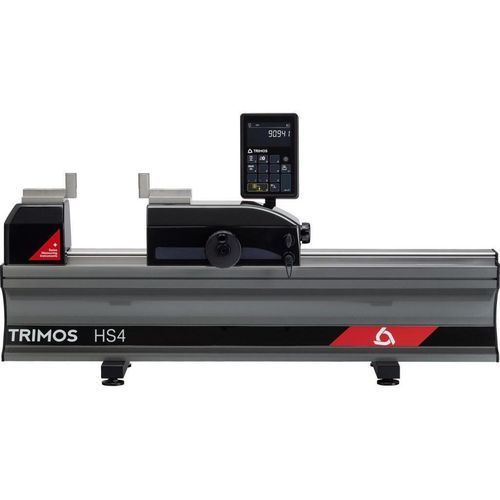

Length measuring instrument HS4

mechanicaldigitalfor the aerospace industry

Horizon Setting HS4, HS5 and HS6 are the ideal instruments for the control and calibration of measuring means with fixed and variable dimensions. Their high precision and finishing level position them as top-of-the-range models for workshop or laboratory use. They are the perfect answer to current needs in the manufacturing field. This new model is based on the already well-known Trimos Horizon Premium, but incorporates new electronics and an innovative display. A modern and ergonomic design, as well as great ease of use, guarantee optimal and highly productive measuring results. Trimos offers a complete range of instruments from 500 mm to 3000 mm. All measuring ranges are direct, meaning the whole measuring range is available without adjustment or intermediary re-calibration. A large selection of easily interchangeable accessories completes the possible applications and guarantees correct positioning of the instruments to be calibrated. - HS5: motorized model - Delivered with two parallel 25 mm TEL5 gauge blocks (HS4, HS5) - Robust design, ideal for use in workshop - Very simple use - Fast and precise checking - Works on battery or power supply Technical details HS4 - Measuring range *: 550 (20), 1050 (40), 1550 (60), 2050 (80), 3050 (120) mm (in) - Max. permissible errors, BMPE: 0.7 + L(mm)/1000 µm - Repeatability, RMPE (2s): 0.5 µm - Maximal Resolution: 0.0001 (0.00001) mm (in) - Max. displacement speed: 1500 mm/s - Measuring force (0 setting): 15 N - Interfaces: RS232/USB - Operational temperature: +10 ÷ +40 °C - Weight: 94, 123, 152, 181, 239 kg HS5 - Measuring range *: 550 (20), 1050 (40), 1550 (60), 2050 (80), 3050 (120) mm (in) - Max. permissible errors, BMPE: 0.7 + L(mm)/1000 µm - Repeatability, RMPE (2s): 0.5 µm - Maximal Resolution: 0.0001 (0.00001) mm (in) - Max. displacement speed: 1500 mm/s - Measuring force (0 setting): 15 N - Interfaces: RS232/USB - Operational temperature: +10 ÷ +40 °C - Weight: 94, 123, 152, 181, 239 kg HS6 - Measuring range *: 550 (20), 1050 (40), 1550 (60), 2050 (80), 3050 (120) mm (in) - Max. permissible errors, BMPE: 0.7 + L(mm)/1000 µm - Repeatability, RMPE (2s): 0.2 µm - Maximal Resolution: 0.0001 (0.00001) mm (in) - Max. displacement speed: 1500 mm/s - Measuring force (0 setting): 3 N - Interfaces: RS232/USB - Operational temperature: +10 ÷ +40 °C - Weight: 94, 123, 152, 181, 239 kg 1) Values determined at a temperature of 20 ± 0.5 °C and a relative humidity of 50 ± 5 %. * The measuring range depends on the anvils used Key Features / Technical Specifications: - Models: HS4, HS5 (motorized), HS6 - Measuring range: 500 to 3000 mm (direct, no intermediary recalibration) - Max. permissible error: 0.7 + L(mm)/1000 µm (HS4, HS5, HS6) - Repeatability: 0.5 µm (HS4, HS5), 0.2 µm (HS6) - Maximal resolution: 0.0001 mm (0.00001 in) - Max displacement speed: 1500 mm/s - Measuring force: 15 N (HS4, HS5), 3 N (HS6) - Interfaces: RS232/USB - Operational temperature: +10 to +40 °C - Weight: 94–239 kg depending on model - Delivered with two parallel 25 mm TEL5 gauge blocks (HS4, HS5) - Works on battery or power supply - Robust, ergonomic design for workshop or laboratory
