Temperature gauge DS2819
pressureanalogfuel

temperature gauge
temperature gauge
Add to favorites
Compare this product


Characteristics

Type
temperature, pressure
Display
analog
Applications
fuel
Domain
for aircraft

Description

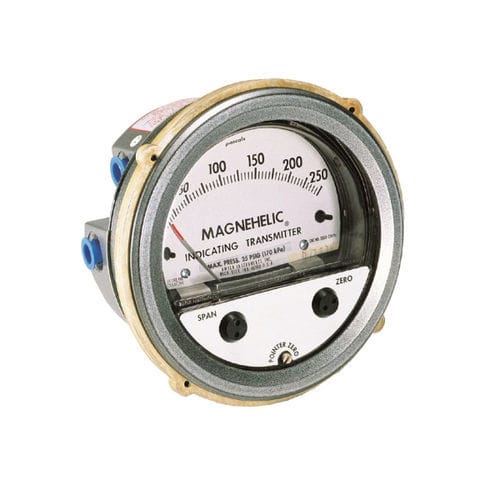

Magnehelic dial gauge Very low differential pressures in air or gas applications Two wire 4-20mA transmission Remote monitoring or control Description: The standard, easy to read Magnehelic® dial gauge gives local indication of very low differential pressures in air or gas applications. Additionally, a two-wire 4-20mA transmission is provided from a built in strain gauge DP monitor, allowing remote monitoring or control. Span and zero adjustments are made with a special tool (supplied), and the unit can be flush panel mounted using the hardware supplied. DP Ranges Pascals or inch WG Accuracy ±2% FSD Media Air & non-corrosive gases Housing Die-cast Aluminum Process Connections 1/8” NPT Female Max Pressure 25 psig max (varies by range) Temperature 0°C to 50°C Output 4-20mA loop powered (10-35Vdc) Panel Cut out 123mm dia Overall Size 140m dia x 65mm deep Weight 1.14kg

Catalogs

No catalogs are available for this product.

See all of TT ELECTRONICS‘s catalogs
