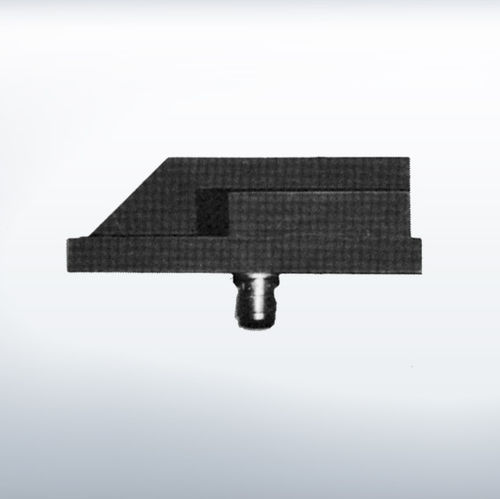

Aircraft antenna AOLP1011
transponderblade

aircraft antenna
aircraft antenna
aircraft antenna
Add to favorites
Compare this product


Characteristics

Applications
for aircraft
Type
transponder
Other characteristics
blade

Description

The slotted blade or “bent stub” antenna provides both vertically and horizontally polarized components of radiated energy. This feature fills in the antenna pattern hole typically exhibited by the 1/4 wave stub antenna. The “bent stub” also provides a vertically polarized component when the aircraft i in a steep bank attitude. Frequency Range Low (GHz) - 1.000 Frequency Range High (GHz) - 1.100 Frequency Range - 1000 – 1100 MHz VSWR - 1.5:1 max Gain - +2 dbi Power Handling - 1.0 KW Peak Impedance - 50 Ohms Weight - 8.0 Ounces Max. Connector - TNC Female
