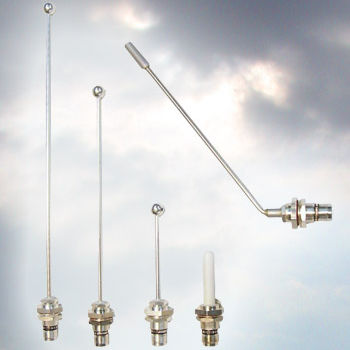

Aircraft antenna AO(***)MON(TNC)
UHFomnidirectionalmonopole

aircraft antenna
aircraft antenna
Add to favorites
Compare this product


Characteristics

Applications
for aircraft
Type
UHF
Other characteristics
omnidirectional, monopole

Description

The most economical antenna type for omni directional applications. A quarter wavelength monopole radiating element simply mounted into a connector. Antennas are airborne qualified and can be scaled to any frequency between .25 and 1.55 GHz. A ground plane is utilized to obtain optimum performance. Customer to specify desired center frequency (***). Our standard model AO(***)MON(TNC) has a straight element with a ball termination. This series of antennas can be customized to your specific requirement such as adding radome cover, radii element, cylindrical termination, base plate, etc. Frequency Range Low (GHz) - 0.250 Frequency Range High (GHz) - 1.550 Frequency - Any 9% bandwith between .25 and 1.55 GHz VSWR - 1.5:1 typical AO(XXX)MON(TNC) series 1.5:1 typical AO(XXX)MON(TNC)G10 series 1.8:1 typical AO(XX)CMON(TNC) series 2.0:1 typical AO(XXX)MON(TNC)R series Polarization - Vertical, linear Power Handling - 100 WCW Impedance - 50 ohms
