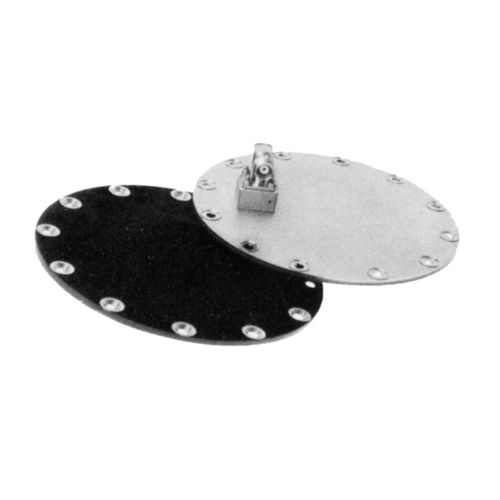

Helicopter antenna ADS43010.5
radar

helicopter antenna
helicopter antenna
helicopter antenna
Add to favorites
Compare this product


Characteristics

Applications
for helicopter
Type
radar

Description

The antenna is a flat microstrip design, mechanically interchangeable with AS-2595/APN-194(V), U B Corp part number AD43011-F16. It was designed for higher antenna isolation applications. Applications Radar Altimetry AS-3831/APN-209 AS-2595/APN-194 Helicopters Frequency Range Low (GHz) - 4.250 Frequency Range High (GHz) - 4.350 Frequency Range - 4250 – 4350 MHz VSWR - 1.8:1 @ 4300 MHz 2.2:1 @ Band Edge Gain - +10.5 dbi @ 4300 MHz Power Handling - 1 KW Pk @ .002 D.C. Side Lobes - >25 db down Isolation - >88 db @ 2.0 ft. spacing Imedance - 50 Ohms Weight - 8.0 oz Connector - TNC Female
