2-axis gyro-stabilized turret USG-212
for helicopterfor dronesfor aircraft

2-axis gyro-stabilized turret
2-axis gyro-stabilized turret
2-axis gyro-stabilized turret
2-axis gyro-stabilized turret
2-axis gyro-stabilized turret
2-axis gyro-stabilized turret
2-axis gyro-stabilized turret
2-axis gyro-stabilized turret
2-axis gyro-stabilized turret
2-axis gyro-stabilized turret
Add to favorites
Compare this product


Characteristics

Number of axes
2-axis
Applications
for drones, for helicopter, for aircraft, for aerostat
Options
with zoom, high-precision, infrared, with inspection camera

Description

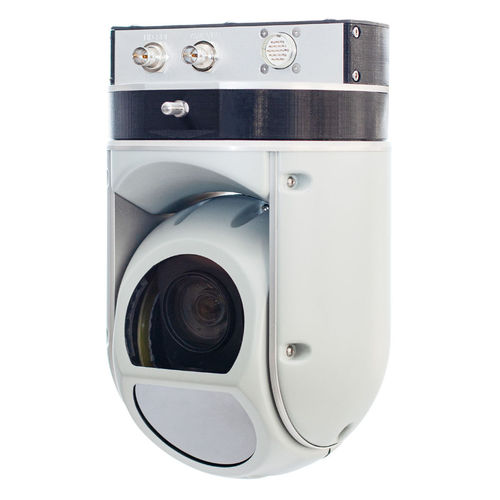

USG-212 EO/IR multi-sensor gyro-stabilized gimbal was designed to be used on UAVs and small manned aircraft. The gimbal is equipped with a Full-HD Sony block camera with 30x optical zoom and a high-quality IR camera. It is sealed and can be operated in any weather conditions. Optionally, an onboard image processing unit is available, adding features like target tracking, coordinates lock, and video stabilization. The anti-vibration damping system eliminates vibrations from the airframe. Even while using the 30x zoom, the image stays clear and stable. Digital video processing module On-board digital video processing module includes advanced features such as target and scene tracking, digital video stabilization, onboard recording, Full-HD live-streaming, and much more. Easy-to-use payload control software The mission control software allows to control all gimbal features, enables moving map, detection, analysis, and identification of targets, creation of objects on the map, generation after-flight reports, and transfer to external sources via API. In addition, the augmented reality feature can overlay street names and objects right on the live video. USG-212 EO/IR gimbal for ISR missions Here's footage of the USG-212 EO/IR gimbal installed on a PD-2 VTOL fixed-wing UAV. USG-212 gimbal is a great tool for ISR applications. It is powered by significant ground control software allowing the payload operator to be more effective and saving a lot of time preparing the report after the mission. Kestrel Land MTI software Due to the capabilities of the Kestrel Land MTI software solution,
