Advertising kiosk totem CITY 6 EVO

dynamicLEDfor airport

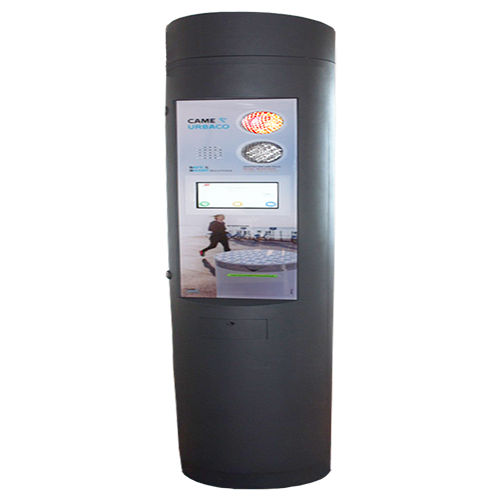

The City 6 EVO Totem is street furniture in wich is integrated all operating elements (such as the PLC mounting plate, control devices and signalization components). It is fitted in the street on an embedding base, allowing a 360° rotation. Its large internal capacity allows the PLC plate and power unit installation inside (external hydraulic pump, pneumatic compressor….). It also enables the network material integration such as fiber optic converters. Equipped with a front face fully customizable that comes with mounted traffic lights, control devices can be easily added on for user interface (RFID card reader, keypad…). Material: Steel S355 - 6 mm (high impact resistance) Treatment: Protection anti-corrosion for electro-zingage Finition: Matt finish thermosetting polyester powder top coat (RAL7016 standard) Isulation: Acoustic and thermal insulation, thickness 5 mm - Fan at the top part to maintain the airflow Opening: Lock-hinged door Protection rating: IP54 Front face in screen printed Dimension: 650 x 210mm Material: polycarbonate Thickness: 8 mm aluminium back face Resistance: IK10
