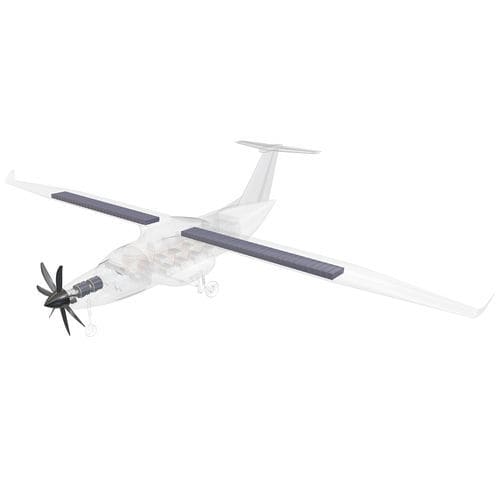

Twin-engine aircraft Microliner

electric motor9-seater

Overview
THE MICROLINER is a fully electric regional/commercial aircraft concept designed for short-haul scheduled operations. By integrating battery packs directly into the wing structure, the design reduces structural weight while improving performance, enabling up to 400 km (215 nm) of fully electric range (excluding operational reserves).

Battery Technology

• Battery packs mounted in the wing to reduce structural weight and counteract bending forces.
• Proprietary pack architecture designed for maintainability and quick installation/removal.
• Scalable architecture to allow performance improvements as cell technology evolves and to support non-commercial applications.

Propulsion System

• Multi-engine, single-propeller configuration providing full redundancy and enhanced operational safety.
• Independent eDrives delivering the safety and redundancy of a twin-engine layout with an efficient direct-drive architecture.
• Single propeller handling designed to ensure centerline thrust in engine-failure scenarios.
• Proof-of-concept testing completed in 2024; EASA Pre-Application Contract concluded to establish a certification baseline.

Cabin & Interiors
THE MICROLINER features a nine-seat layout optimized for passenger comfort and efficient boarding. Aisle width is comparable to current single-aisle commercial aircraft. The interior can be reconfigured for increased space, reduced seating, or mission-specific roles such as cargo or air ambulance. A dedicated rear luggage compartment preserves cabin space; a lavatory is available on request.

Performance highlights

• Fully electric range: up to 400 km (215 nm) + commercial IFR reserves.
• Maximum cruise speed: 190 KEAS / 235 KTAS at ceiling.
• Maximum operating altitude: 20,000 ft.
• Typical charging time: < 40 min.
• Peak charging power: up to 800 kW.

Additional notes
The concept integrates batteries into the wing to reduce structural weight and improve performance, uses a maintainable, scalable battery-pack architecture, and employs a direct-drive propeller transmission with independent eDrives for redundancy and safety.

Technical specifications

• Dimensions: Wingspan: 23.99 m / 75.45 ft; Length: 13.51 m / 44.34 ft; Height (to static ground): 4.76 m / 15.63 ft.
• Capacity & Weights: Seating capacity: 9 PAX + 2 pilots; MTOW: 5,700 kg / 12,500 lbs; Useful load: 1,000 kg / 2,204 lbs; Max cargo volume: 10 m3.
• Performance & Range: Maximum cruise speed: 190 KEAS / 235 KTAS at ceiling; Range: 400 km (215 nm) + commercial IFR reserves; Max operating altitude: 20,000 ft.
• Charging & Power: Typical charging time < 40 min; Peak charging power up to 800 kW.
• Take-off distance: 800 m / 2,625 ft (MTOW, SL, ISA+0, paved); 1,000 m / 3,281 ft (MTOW, SL, ISA+0, grass).
• Cabin dimensions: Cabin height: 146 cm / 57.5 in; Cabin width: 162 cm / 63.8 in; Cabin floor width: 127 cm / 50.0 in.
