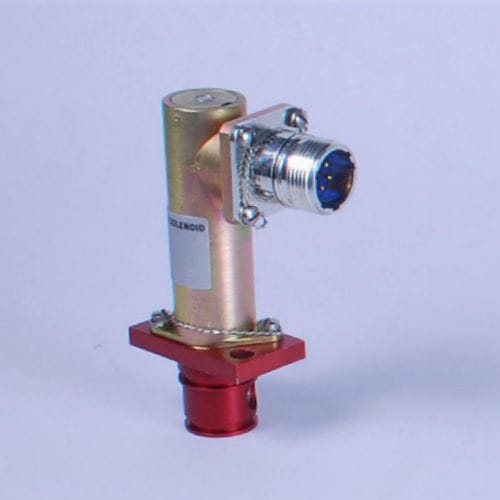

V3400 solenoid valves are specifically designed to meet the critical weight and size limitations in aircraft fuel control systems. They are well-suited for the extreme vibration, temperature, and cycle life requirements found in the most severe operating conditions. The compact size and low weight allows for easy maintenance, saves additional space, and provides for vibration-proof leak-tight pressure boundary seals. These valves are direct acting and do not require system pressure to operate. The V3400 is available in a normally closed or normally open configuration.
The V3400 is typically used as a fuel shut-off valve on a wide variety of aircraft APUs
•Flow Rate: 200 PPH @ 10 PSIG of MIL-C-7024 Type II
•Electrical Connection: MS 3102A-10SL-4P side-mount standard
•Wetted Materials: Aluminum, CRES 303, 430F, 302,Carbon, Fluorosilicone
•Weight: 0.38 lbs. max.
•Flanged manifold mount
•Self-cleaning wear compensating seat design
•Fully customizable to your application
