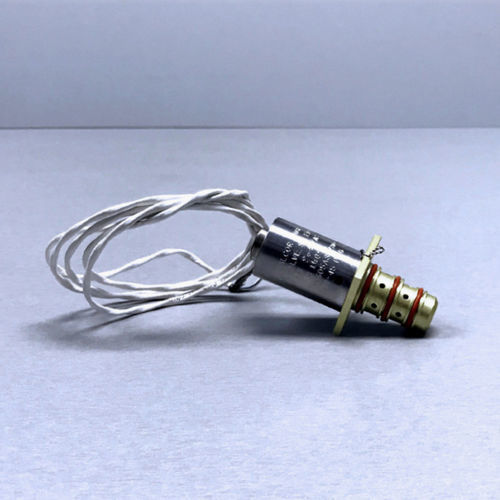

Aircraft solenoid valve V57300
for gas3-waynormally closed

aircraft solenoid valve
aircraft solenoid valve
aircraft solenoid valve
aircraft solenoid valve
Add to favorites
Compare this product


Characteristics

Applications
for aircraft
Media
for gas
Ports/positions
3-way
Function
normally closed, normally open
Other characteristics
compact, manifold, high-pressure, plug, control
DN

1.1 in

Voltage

Min.: 18 V

Max.: 30 V

Pressure

Min.: 0 psi

Max.: 7,000 psi

Temperature range

Min.: -65 °F
(-53.9 °C)

Max.: 350 °F
(176.7 °C)

Description

V57300 are direct acting 3-way/2 position solenoid valves designed to control high pressures of noncorrosive and corrosive gases and liquids. Their compact size and low weight allow these valves to be used in the tightest space available. Manifold mounting allows for easy maintenance, saves additional space, and provides for vibration-proof leak-tight pressure boundary seals. They are well-suited for the extreme vibration, temperature, and cycle life requirements found in the most severe aircraft operating conditions. V57300 valves are available in a normally closed or normally open configuration. APPLICATION V57300 valves are typically used in non-corrosive gases and liquids that require a high-pressure 3-way valve. They are also suitable for use in piloting higher flow valves. FEATURES • Flow Rate: Cv=0.074; Cd=0.65 • Leak Rate: Internal is 1.0 cc/hr liquid, 18 cc/min gas. • Current: 1.5 amps at 30 VDC at 70°F; • Electric Connection: Pigtails are standard; optional connectors available. • Wetted Materials: Aluminum, CRES 303, 430F, 302,Fluorosilicone • Manifold mount standard • Fully customizable to your application
